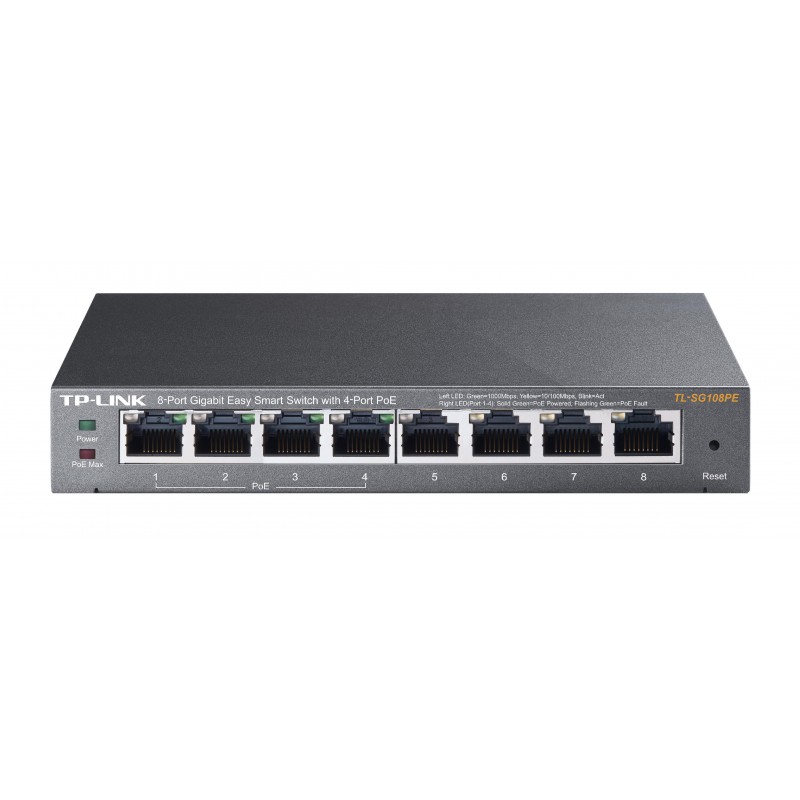

TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
  • TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE
he TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

Power Over Ethernet



4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Effective Management



TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Easy to Use



TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
AC input frequency50 Hz
AC input voltage220 V
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlYes
CertificationCE, FCC
Depth101 mm
Height25 mm
IGMP snoopingYes
Jumbo frames supportYes
LED indicatorsActivity,Link,PoE,Power,Speed,Status
Link aggregationYes
MAC address table4000 entries
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Number of VLANs32
Output current1.25 A
Output voltage48 V
Packet buffer memory1.5 MB
Port mirroringYes
Power consumption (max)65.2 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity4
Power over Ethernet plus (PoE+) ports quantity4
Rate limitingYes
Switch typeUnmanaged
Switching capacity16 Gbit/s
Total Power over Ethernet (PoE) budget55 W
User guideYes
VLAN supportYes
Width158 mm
Jumbo frames15
Loop protectionYes
Packet forwarding rate (1 Gbps)11900000 pps
Power over Ethernet (PoE) voltage range220 - 220 V

You might also like

  • CCS DoubleGang Dryline Back Box
    CCS DoubleGang Dryline Back Box
  • HDMI V2.0 Male-Male Cable
    HDMI V2.0 Male-Male Cable
  • RackyRax 600mm x 600mm Data Cabinet
    RackyRax 600mm x 600mm Data Cabinet
  • 300mm 2u Cantilever Shelf
    300mm 2u Cantilever Shelf
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • Cat6 RJ45 Patch Cables
    Cat6 RJ45 Patch Cables
  • Cat5e Shielded RJ45 Modules - Euromod Size
    Cat5e Shielded RJ45 Modules - Euromod Size
  • Cat6a FTP RJ45 Module (Euromod Size)
    Cat6a FTP RJ45 Module (Euromod Size)
  • TP-LINK Gigabit Multi-mode Media Converter
    TP-LINK Gigabit Multi-mode Media Converter
  • TP-LINK 24-Port Gigabit Desktop/Rackmount Switch
    TP-LINK 24-Port Gigabit Desktop/Rackmount Switch

Similar products

  • TP-LINK LS1005
    TP-LINK LS1005
  • TP-LINK LS1005G
    TP-LINK LS1005G
  • TP-LINK LS1008
    TP-LINK LS1008
  • TP-LINK LS1008G
    TP-LINK LS1008G

TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE

8-Port, 10/100/1000Mbps RJ45 Ports, IEEE 802.3i/u/ab/af/x/q/p

TL-SG108PE

In Stock

£74.82
£62.35 Ex VAT.
