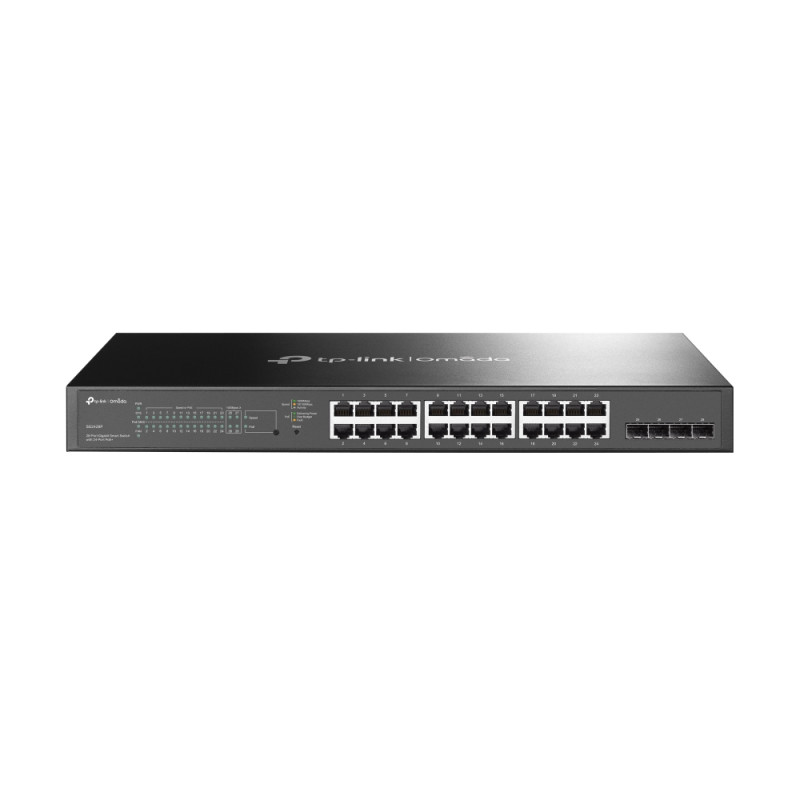

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
  • TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
  • TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G support No
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Cable types supported Cat3,Cat4,Cat5,Cat5e
Cables included AC
Certification CE, FCC, RoHS
Copper ethernet cabling technology 10Base-T,1000Base-T
Depth 220 mm
Fiber ethernet cabling technology 1000BASE-X
Firmware upgradeable Y
Flow control support Y
Form factor 1U
Forwarding rate 41.66 Mpps
Gigabit Ethernet (copper) ports quantity 24
Heat dissipation 1052.94 BTU/h
Height 44 mm
IGMP snooping Y
Jumbo frames support Y
Link aggregation Y
MAC address table 8000 entries
Management protocols SNMPv1/v2c/v3, SNTP
MIB support Y
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of fans 2 fan(s)
Number of queues 8
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Packet buffer memory 4.1 MB
Port mirroring Y
Power consumption (max) 301.1 W
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 24
Power source AC
Power supply included Y
Quality of Service (QoS) support Y
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Security algorithms HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
Spanning tree protocol Y
SSH/SSL support Y
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L2/L2+
Switch type Managed
Switching capacity 56 Gbit/s
System event log Y
Total Power over Ethernet (PoE) budget 250 W
User guide Y
VLAN support Y
Web-based management Y
Width 440 mm
ARP inspection Y
Jumbo frames 9000
IP-MAC-Port binding Y
SFP module slots quantity 4
BPDU filtering/protection Y
Power over Ethernet (PoE) power per port 30 W
Authentication type RADIUS
Queue scheduling algorithms SP,WRR+SP,Weighted Round Robin (WRR)
Product colour Black
Virtual LAN features MAC address-based VLAN,Protocol-based VLAN,Voice VLAN
DHCP features DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client

Specific References

EAN13
6935364030650

Download

sg2428p.pdf

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+ Data Sheet

Download (23.29MB)

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

24× 10/100/1000 Mbps PoE+ RJ45, 4× Gigabit SFP Slots, 56 Gbps, 8K MAC, 9 KB Jumbo, 440×220×44 mm
In Stock
£233.01
Tax excluded
Reference: sg2428p
Quantity
