Reasons to Buy
Technical Headlines
- 8× 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 64W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation

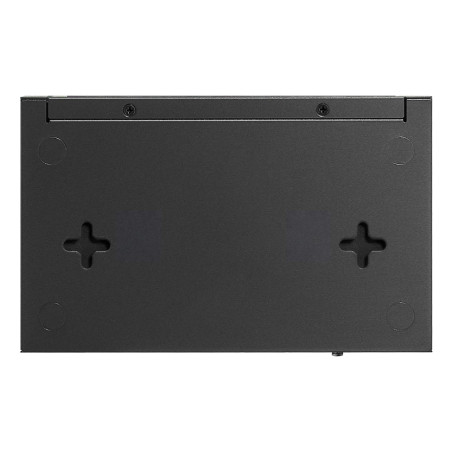

- Durable metal casing and desktop/wall mounting design
Technical Headlines
- Managed L2 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries Switching capacity: 16 Gbit/s
- DIN rail Rack mounting
- DC Power over Ethernet (PoE)
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | Power |
| DC input voltage | 53 V |
| Depth | 100.7 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Form factor | DIN rail |
| Forwarding rate | 11.904 Mpps |
| Height | 25.4 mm |
| IGMP snooping | Yes |
| Input current | 1.31 A |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Multicast support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 0.5 MB |
| Port mirroring | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power source | DC |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mounting | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 16 Gbit/s |
| Total Power over Ethernet (PoE) budget | 64 W |
| Transmission distance (max) | 0.25 km |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 158 mm |
| Jumbo frames | 15000 |
| Loop protection | Yes |
| Product colour | Black |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| DHCP features | DHCP client |
| Cloud-managed | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
Specific References
- EAN13
- 0840460603607

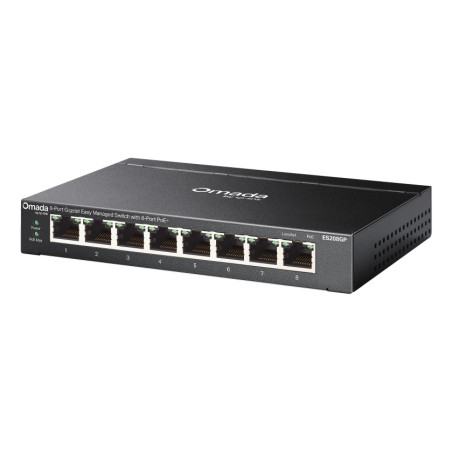

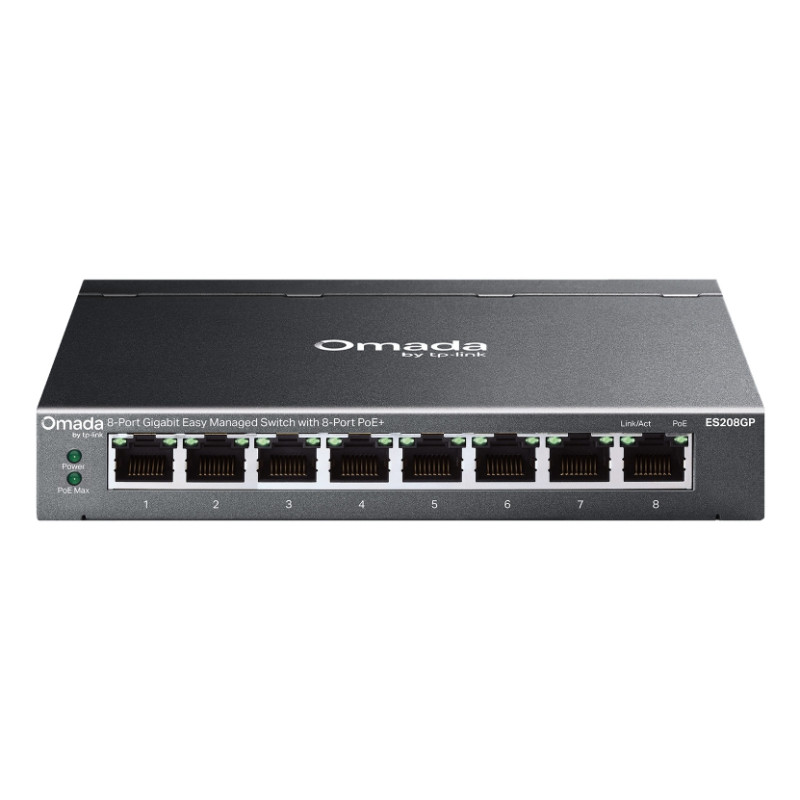

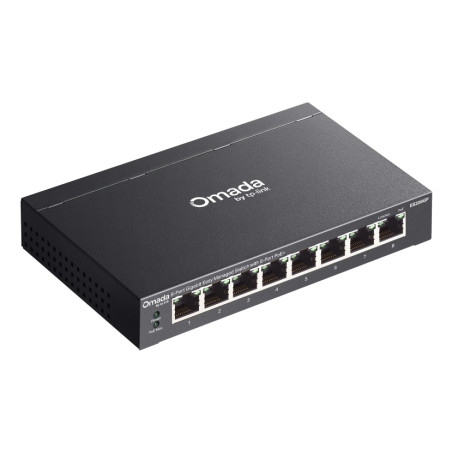

TP-Link ES208GP
TP-Link Omada ES208GP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail
£81.57
£67.98 Ex. VAT
TP-Link Omada ES208GP, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail
