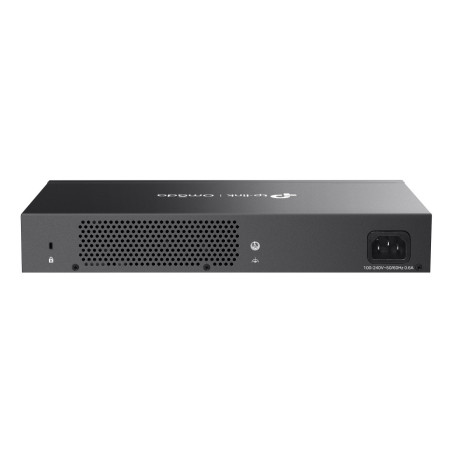

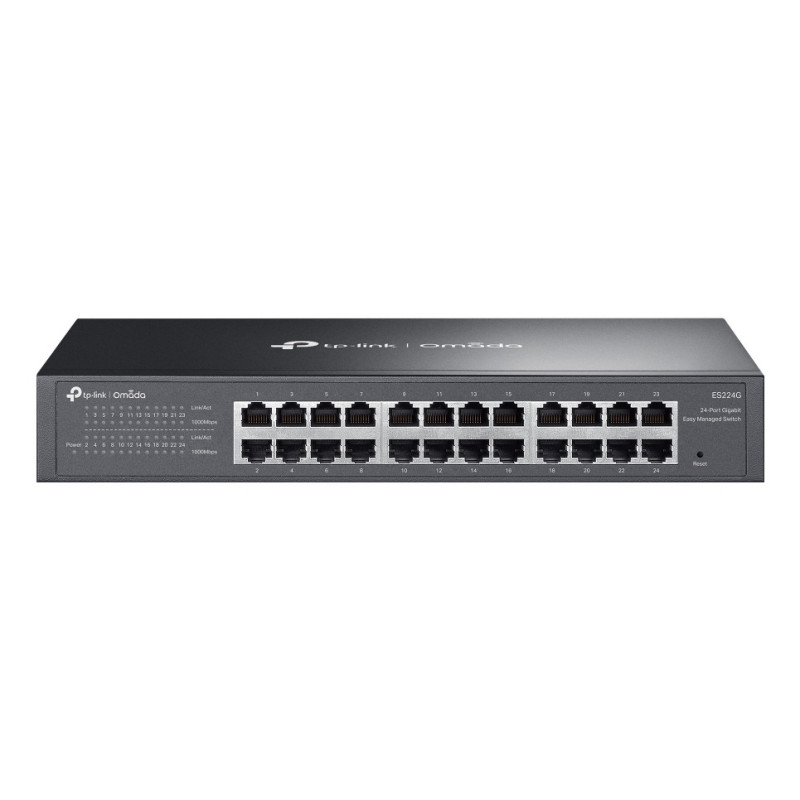

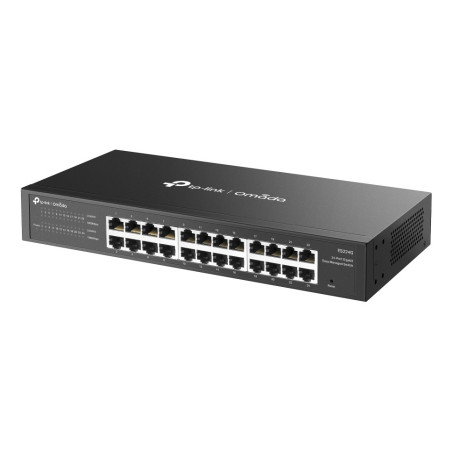

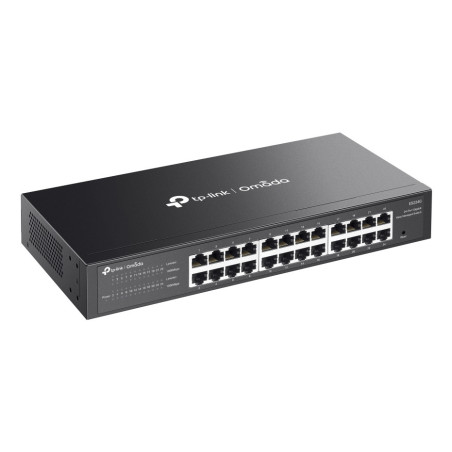

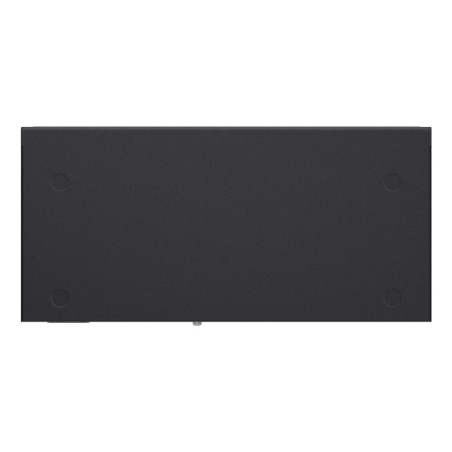

P-Link ES224G
  • P-Link ES224G
  • P-Link ES224G
  • P-Link ES224G
  • P-Link ES224G
  • P-Link ES224G
Reasons to Buy
  • 24× 10/100/1000Mbps RJ45 ports
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
  • Automatic Loop Prevention and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/rack mounting design


Technical Headlines
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • MAC address table: 8000 entries Switching capacity: 48 Gbit/s
  • Rack mounting
  • AC Power supply included


Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Cables included AC
Depth 140 mm
Firmware upgradeable Yes
Flow control support Yes
Forwarding rate 35.7 Mpps
Gigabit Ethernet (copper) ports quantity 24
Height 44 mm
IGMP snooping Yes
Jumbo frames support Yes
Link aggregation Yes
MAC address table 8000 entries
Multicast support Yes
Number of VLANs 32
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 50 °C
Packet buffer memory 4 MB
Port mirroring Yes
Power source AC
Power supply included Yes
Quality of Service (QoS) support Yes
Rack mount kit No
Rack mounting Yes
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Surge protection Yes
Switch layer L2
Switch type Managed
Switching capacity 48 Gbit/s
User guide Yes
VLAN support Yes
Web-based management Yes
Width 294 mm
Jumbo frames 15000
Installed SFP modules quantity 0
Installed SFP+ modules quantity 0
Fast leave Yes
Surge protection voltage 6 kV
Queue scheduling algorithms Weighted Round Robin (WRR)
Product colour Black
Virtual LAN features MTU VLAN, Port-based VLAN
DHCP features DHCP client
Fanless Yes
Cloud-managed Yes
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Unified static configuration Yes

Specific References

EAN13
1210002600712

ES224G.pdf

TP-Link ES224G Data Sheet

TP-Link ES224G

TP-Link Omada ES224G, Managed, L2, Gigabit Ethernet (10/100/1000), Rack mounting
In Stock
£139.79
£116.49 Ex. VAT
Reference: ES224G
Quantity
