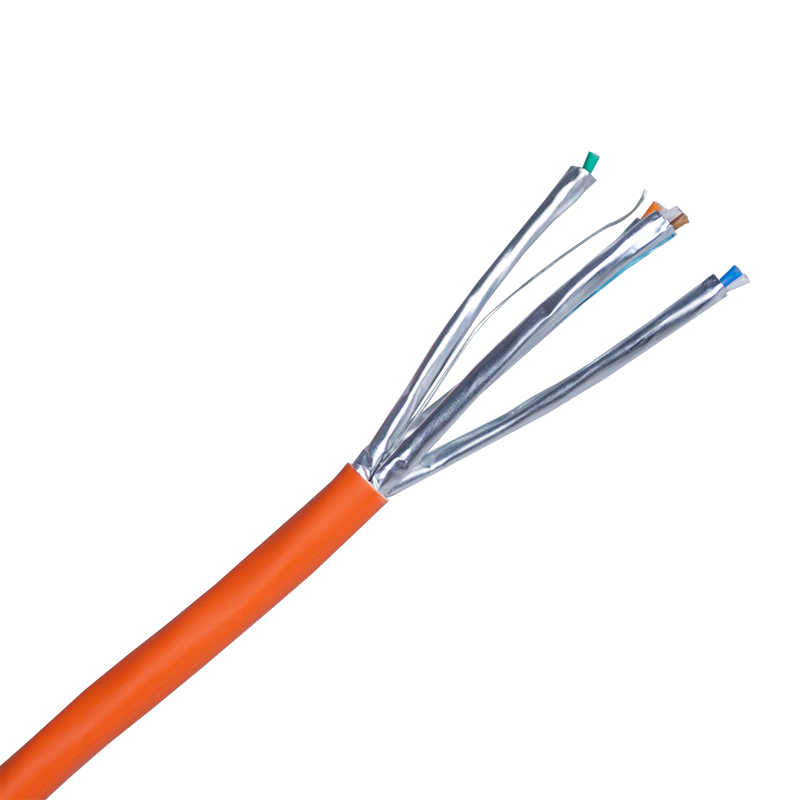

Cat6a U/FTP LSZH B2ca Solid Cable
  • Cat6a U/FTP LSZH B2ca Solid Cable
  • Cat6a U/FTP LSZH B2ca Solid Cable
Connectix Category 6A U/FTP Cable has been designed to provide the exceptional performance required to support extremely high speed applications, including 10-Gigabit Ethernet.

The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.

The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien crosstalk. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.
Operating temperature (T-T)-20°C up to +60 °C
Conforms toIEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC
Fire RatingB2ca,s1a,d1,a1
InsulationSkin-foam-skin Polyethylene, Ø 1.33 mm
Min. Bending Radius Installation60mm
Min. Bending Radius Installed30mm
Installation temperature (T-T)0˚C to +50˚C
ConductorBare copper wire (AWG 23)
Drain Wireyes
Shield Around Each PairAl/Mylar
SheathFR-LSZH
Outer Diameter7.4mm
Max. Pulling Tension78n

You might also like

  • Cat6a PatchLock RJ45 FTP Patch Leads
    Cat6a PatchLock RJ45 FTP Patch Leads
  • 12 Port Cat6 10" UTP Patch Panel
    12 Port Cat6 10" UTP Patch Panel
  • ST Multimode Fibre Pigtails
    ST Multimode Fibre Pigtails
  • ST - ST Multimode Duplex Fibre Patch Leads
    ST - ST Multimode Duplex Fibre Patch Leads
  • 550mm Deep RackyRax Wall Mounted Data Cabinet
    550mm Deep RackyRax Wall Mounted Data Cabinet
  • 450mm Deep CCS Wall Mount Data Cabinets
    450mm Deep CCS Wall Mount Data Cabinets
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • 600mm Deep Racky Rax Wall Mounted Cabinet
    600mm Deep Racky Rax Wall Mounted Cabinet
  • 48 Port Cat6 UTP CCS Elite Patch Panel
    48 Port Cat6 UTP CCS Elite Patch Panel
  • Custom Multimode Duplex Fibre Patch Leads
    Custom Multimode Duplex Fibre Patch Leads

Similar products

  • Cat6a External F/FTP Cable - LDPE Outer Sheath
    Cat6a External F/FTP Cable - LDPE Outer...
  • Cat6a S/FTP Patch Cable
    Cat6a S/FTP Patch Cable
  • CCS Cable Stripper
    CCS Cable Stripper

Cat6a U/FTP LSZH B2ca Solid Cable

Available in 305m boxes.

001-003-003-08

In Stock

£220.66
£183.88 Ex VAT.
