450mm Deep Wall Mounted Data Cabinets
  • 450mm Deep Wall Mounted Data Cabinets

The compact design of the Rax 19” Wall Mounting Cabinets make them ideal for smaller networks and workgroups.

The cabinets are available in various sizes and are supplied fully assembled. Each cabinet comprises a welded steel frame and adjustable front 19” mounting profiles.

A gland plate is situated in the top and bottom of the cabinet. The cabinets feature ventilation slots top and bottom; and have a lockable glass front door, and removable sides. The cabinet frameworks are finished in a high quality attractive black.

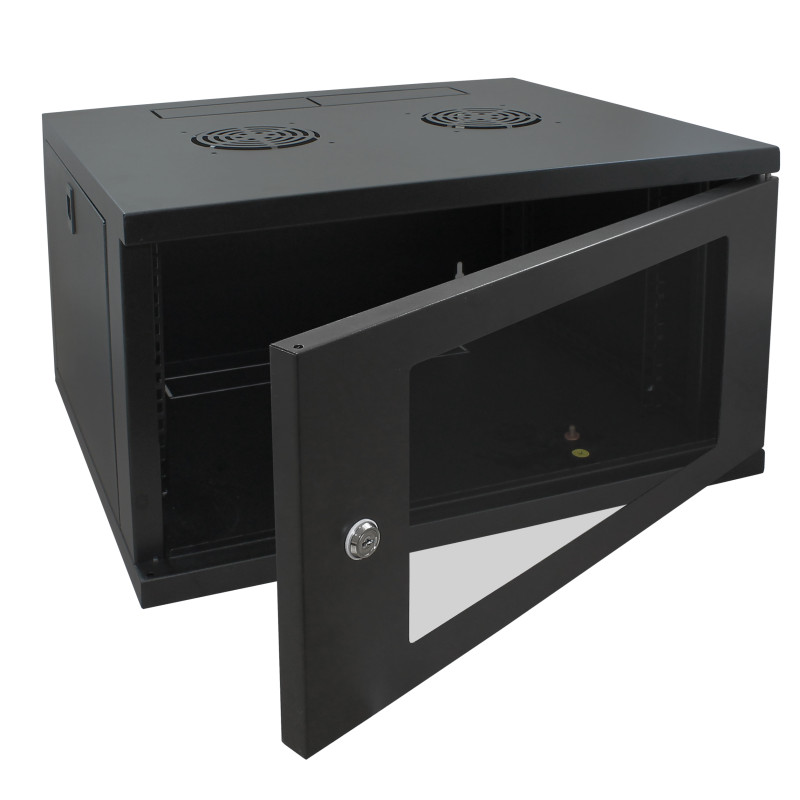

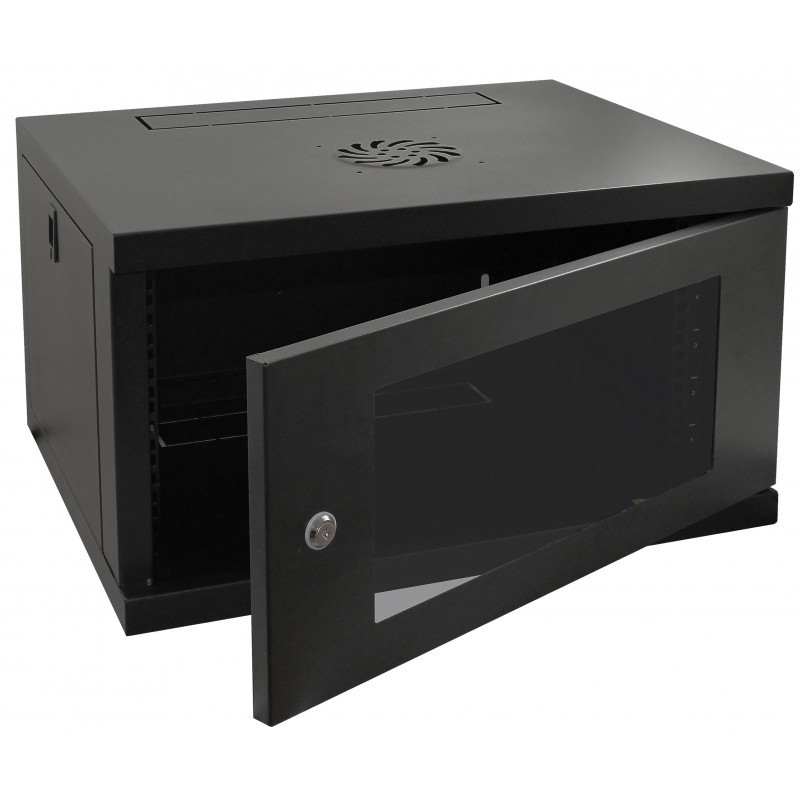

6u 450mm Deep Data Cabinet shown for illustration

Features:

  • Supplied fully assembled
  • Ventilated top
  • Adjustable mounting posts
  • Lockable and removable sides
  • Cable access top and bottom
  • Lockable glass front door

Dimensions By U Height

U Height Size (HxWxD) Net Weight
6U 348x550x450 mm 14 Kg
9U 481x550x450 mm 17.5 kg
12U 615x550x450 mm 21 Kg
15U 748x550x450 mm 24.5 Kg
18U 881x550x450 mm 29 Kg
21U 1015x550x450 mm 32.5 Kg

Maximum Internal Depth is 340mm
Cable Entry Top & Bottom
Colours Black
Construction Welded
Depth 450mm
Front Door Type Glass Lockable/Removable
Gross weight 12kg
Internal Working Depth 340mm
Mounting Profiles 19" Adjustable Front & Rear
Side Panels Removable
Width 550mm

Specific References

EAN13
5056045700592
