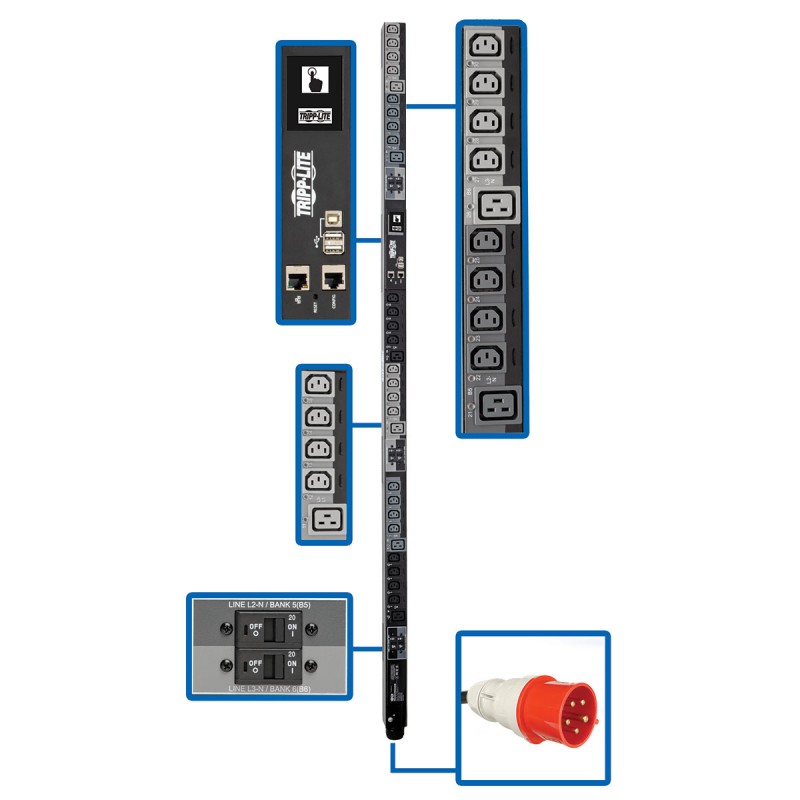

Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
  • Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red
The PDU3XEVSR6G32B 22.2kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.



The 0U PDU features 30 switched 220/230V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 1.8-meter cord with IEC 309 32A Red 380/400V plug connects the PDU to a compatible AC power source, generator or protected UPS.



The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.



A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.



Distributes, Monitors and Manages Network-Grade AC Power



● 22.2kW 380/220V 400/230V switched PDU with 3-phase input

● Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

● IEC 309 32A Red 380/400V plug with 1.8m cord connects to compatible AC power source

● Firmware upgrades support future product enhancements



30 Switched 220/230V Outlets Distribute AC Power



● 24 C13 and 6 C19 outlets split into 6 separately breakered load banks

● Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices

● Plug-lock insert sleeves prevent cables from becoming accidentally disconnected



Color Touchscreen LCD



● Reports network data, including IP address, input current level per phase, and output current per load bank and per outlet with ±1% billing-grade accuracy

● Generates unique QR code for read-only access to PowerAlert® Device Manager via mobile device

● Full access available by logging into PowerAlert Device Manager via browser as user with read/write credentials



Built-In LX Platform Interface



● Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH

● Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

● Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

● No Java required



Broad Communications Compatibility



● Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

● Supports automatic and manual assignment of IP address



Essential Safety Features



● Tiered access allows administrator and guest to log in via web browser

● Immediate alert notifications via email or SNMP traps

● Supports user-specified alarm notification thresholds

● Real-time clock backup maintains day/date even if PDU is unpowered



Easy 0U Installation in EIA-Standard 19 in. Racks



● Mounts vertically using included toolless buttons or rack-mounting brackets

● Included PDUMVROTATEBRKT allows mounting with rear-facing outlets



● 22.2kW 220/230V 3-phase switched 1.8m 0U PDU

● 30 individually controllable outlets—24 C13, 6 C19

● Built-in LX Platform interface for remote access 24/7

● IEC 309 32A Red 380/400V PDU input with 1.8m AC power cord

● Touchscreen LCD with mobile access option via QR code



Package Includes



● PDU3XEVSR6G32B 22.2kW 3-Phase Switched PDU

● Built-in LX Platform interface

● Configuration cable

● (30) Plug-lock insert sleeves

● Rack-mounting hardware

● PDUMVROTATEBRKT mounting bracket accessory

● Owner’s manual
AC input frequency50/60 Hz
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity30 AC outlet(s)
Cable length1.83 m
Cables includedAC
CertificationUL60950-1: 2007 R12.11, IEC 60950-1: 2005+A1:2009, CAN/CSA-C22.2 NO. 60950-1-07+A1:2011, NOM, CE (EN 60950-1), FCC/CE, RoHS, TAA
Dimensions (WxDxH)246 x 1928 x 175 mm
DisplayLCD
LED indicatorsY
ManualY
MaterialMetal
Maximum current32 A
Maximum power23000 W
Mountingvertical
Nominal input voltage380-400 V
Nominal output voltage220-230 V
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 50 °C
Package depth64 mm
Package dimensions (WxDxH)55.1 x 64 x 1778 mm
Package height1778 mm
Package weight7260 g
Package width55.1 mm
PDU typesSwitched
Power plugIEC309
Rack capacity0U
RoHS complianceY
Storage temperature (T-T)-15 - 60 °C
TypeThree-phase
Weight10500 g
Product colourBlack

PDU3XEVSR6G32B.pdf

Tripp Lite 22.2kW 3-Phase Switched PDU, LX Platform Interface, 220/230V Outlets (24 C13/6 C19), Touchscreen LCD, IEC 309 32A Red Data Sheet

Download (450.05k)
