Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered single phase 16A 200/220/230/240V PDU
- Reversible housing; 6.5 in. / 16.5 cm depth

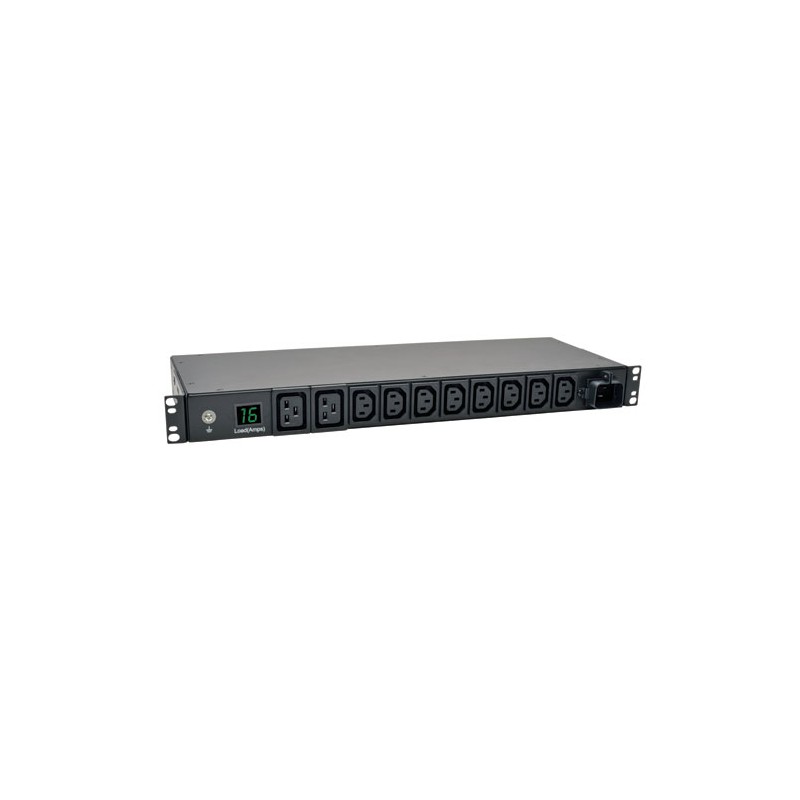

- 3.8kW 16A single phase 200/220/230/240V Metered Power Distribution Unit / PDU
- Built-in 2 digit visual meter continuously reports PDU load level in amps
- C20 inlet with IEC-309 Blue 16A input; 2.5m line cord
- 1U horizontal rackmount format installs in one rack space
- 10 total outlets (8 C13 / 2 C19)
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Front panel grounding lug
AC outlet types |
C13 coupler,C19 coupler |
AC outlets quantity |
10 AC outlet(s) |
Cable length |
2.5 m |
Certification |
CE (IEC / EN60950-1), GOST |
Colour of product |
Black |
Dimensions (WxDxH) |
444 x 165 x 28.7 mm |
Display |
LCD |
LED indicators |
Yes |
Material |
Metal |
Maximum current |
16 A |
Mounting |
Horizontal |
Nominal input voltage |
200-240 V |
Nominal output voltage |
200-240 V |
Operating altitude |
0 - 3000 m |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
-15 - 50 °C |
Output connections |
8 x C13 & 2 x C19 |
Package dimensions (WxDxH) |
521 x 279 x 76 mm |
PDU types |
Metered |
Power plug |
IEC309 |
Rack mounting |
1U |
RoHS compliance |
Yes |
Weight |
3100 g |
Download
Tripp Lite 3.8kW Single-Phase Metered PDU, 200/220/230/240V Outlets (8 C13, 2 C19) IEC-309 16A Blue, 2.43 m (8-ft.) Cord, 1U Data Sheet
Download (491KB)
