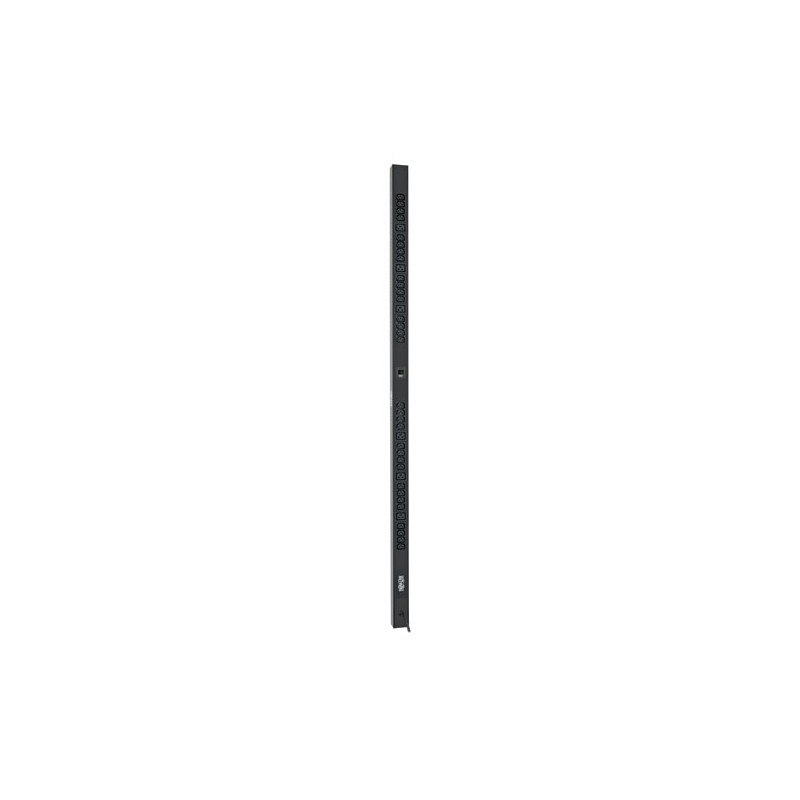

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered single phase 16A 200/220/230/240V 0U 63.75in / 1.61 m vertical rackmount PDU
- Two-digit meter reports output current in amps
- 10ft / 3m input cable with IEC309 Blue 16A input connection
- 38 output receptacles (6 C19, 32 C13), included plug-lock cord retention sleeves
- Toolless button mount and bolt-down bracket installation hardware included
- PDUMV16HV 63.75 inch Metered PDU with owner's manual
- Plug-lock cord retention sleeves (32 C14 and 6 C20)
- Set of mounting brackets and installation hardware
- 3.84kW 16A single phase 200/220/230/240V Metered Power Distribution Unit / PDU
- Two-digit lighted meter reports combined total output current in amps
- 10ft / 3m input cable with Blue IEC309 16A input plug
- 0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces
- 38 total outlets (6 C19, 32 C13)
- Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
AC outlet types |
C13 coupler, C19 coupler |
Cable length |
3.0 m |
Certification |
IEC 60950-1, GOST |
Colour of product |
Black |
Dimensions (WxDxH) |
57 x 95 x 1620 mm |
Display |
LED |
LED indicators |
Yes |
Material |
Metal |
Maximum current |
16 A |
Mounting |
vertical |
Nominal input voltage |
200-240 V |
Nominal output voltage |
200-240 V |
Operating relative humidity (H-H) |
0 - 95 % |
Output connections |
32 x C13 & 6 x C19 |
Package dimensions (WxDxH) |
76 x 127 x 1648 mm |
PDU types |
Metered |
Rack mounting |
0U |
RoHS compliance |
Yes |
Specific References
- EAN13
- 0037332182876
