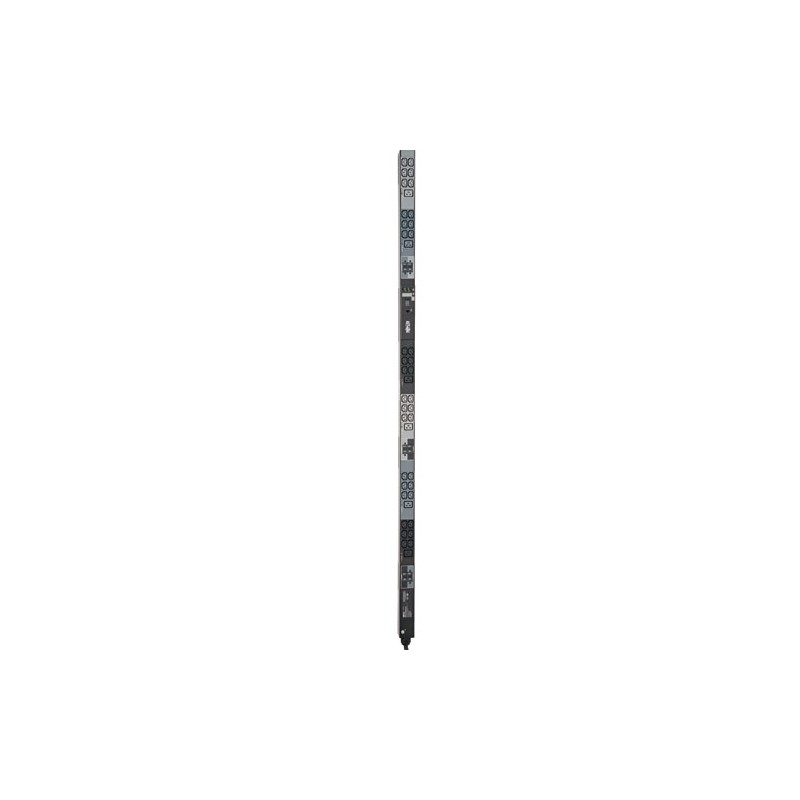

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current, output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Metered 22.2kW 3 Phase 380/400V input 220/230V output PDU
- Visual meter reports output amps per bank, total kW and input voltage
- IEC309 32A Red (3P+N+E) 3 phase 380/400V input, 6 ft. / 1.8m line cord
- 42 220/230V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves
- 0U Vertical Rackmount with Toolless button-mount installation
- 22.2kW 3 phase 380/400V input, 220/230V output Metered Power Distribution Unit / PDU
- Visual display with scroll function enables selection of breakered load banks 1-6 for output current reporting in amps, total kW output and PDU input voltage
- Attached IEC309 32A Red (3P+N+E) 3 phase 380/400V input, 6-ft. / 1.8m line cord
- 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks
- 42 total 220/230V outlets (36 C13, 6 C19) arranged in 6 separately breakered single phase output load banks
- Included cord retention sleeves keep vital network equipment plugged in and continuously powered
- Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included)
AC outlet types |
C13 coupler,C19 coupler |
AC outlets quantity |
42 AC outlet(s) |
Cable length |
1.83 m |
Certification |
Tested to CE (IEC 60950-1, EN55022, EN55024), EN Class A (Emissions), TAA Compliant |
Colour of product |
Black |
Dimensions (WxDxH) |
55.1 x 63.2 x 1778 mm |
Input frequency |
50/60 Hz |
LED indicators |
Yes |
Material |
Metal |
Maximum current |
32 A |
Maximum power |
23000 W |
Maximum total current draw per phase |
16 A |
Mounting |
vertical |
Nominal input voltage |
380-400 V |
Nominal output voltage |
200-240 V |
On/off switch |
Yes |
Operating altitude |
0 - 3000 m |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
32 - 122 °F |
Package dimensions (WxDxH) |
150 x 175 x 1945 mm |
Package weight |
9300 g |
PDU types |
Metered |
Power plug |
IEC309 |
Power protection features |
Overload |
Rack mounting |
0U |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-15 - 60 °C |
Weight |
6490 g |
Master AC outlets quantity |
36 |
Slave AC outlets quantity |
6 |
Download
Tripp Lite 22.2kW 3-Phase Metered PDU, 220/230V, 42 outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 380/400V input, 0U Data Sheet
Download (499.55KB)
