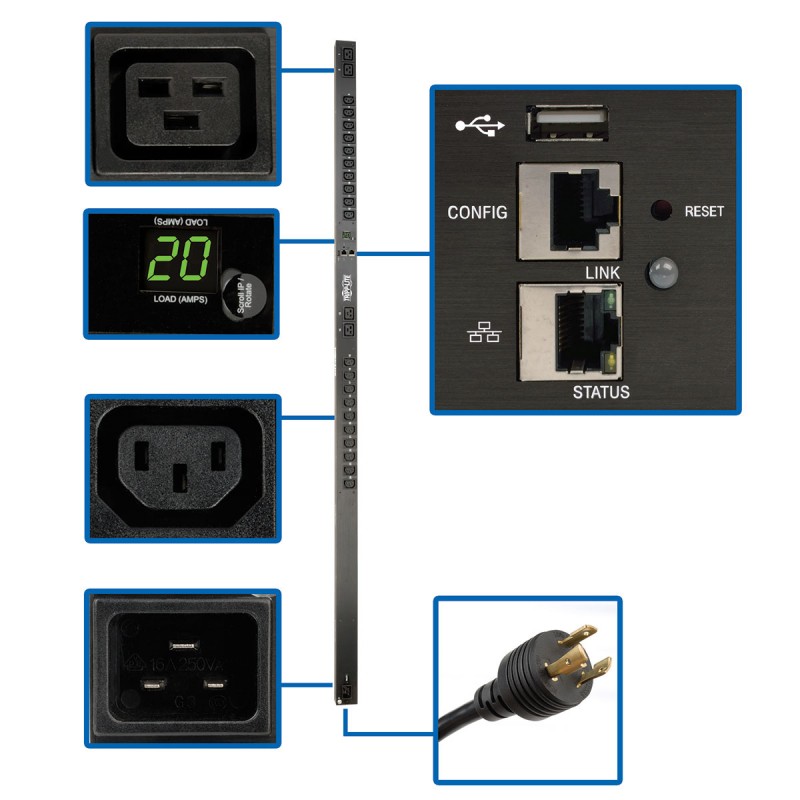

The PDUMNV20HVLX 3.3–3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for your IT or industrial application, the 0U PDU features 24 outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 3.05 m cord with NEMA L6-20P plug is included.



The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.



A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.



Distributes and Monitors Network-Grade AC Power



● 3.3–3.7kW 208/230V 20A monitored PDU with single-phase input

● C20 inlet compatible with wide variety of user-supplied power cords

● Detachable 3.05 m cord with NEMA L6-20P plug included

● Firmware upgrades support future product enhancements



20 C13 and 4 C19 Outlets Distribute AC Power



● Included plug-lock inserts prevent cables from becoming accidentally disconnected



Digital Ammeter



● Reports total connected equipment load in real time

● Supports IP-address self-ID

● Rotates 180° for easy reading at either angle



Built-In LX Platform Interface



● Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH

● Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

● Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

● No Java required



Broad Communications Compatibility



● Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

● Supports automatic and manual assignment of IP address



Easy 0U Installation in EIA-Standard 19 in. Racks



● Mounts vertically using included toolless buttons or rack-mounting brackets

● Included PDUMVROTATEBRKT allows mounting with rear-facing outlets



● 3.3–3.7kW 208/230V single-phase monitored 0U PDU

● 24 outlets—20 C13, 4 C19—with plug-lock insert sleeves

● Built-in Java-free LX Platform interface for remote access 24/7

● Digital ammeter for on-site load monitoring in real time

● C20 inlet input with detachable 3.05 m NEMA L6-20P power cord



Package Includes



● PDUMNV20HVLX 3.3–3.7kW Single-Phase Monitored PDU

● Built-in LX Platform interface

● Detachable NEMA L6-20P to C19 power cord, 3.05 m

● Configuration cable

● (24) Plug-lock inserts

● Rack-mounting hardware

● PDUMVROTATEBRKT mounting bracket accessory

● Owner’s manual
AC input frequency50/60 Hz
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity24 AC outlet(s)
Cable length3.05 m
Dimensions (WxDxH)56 x 67 x 1778 mm
LED indicatorsY
ManualY
Maximum current20 A
MonitoringCurrent,Power
Mountingvertical
Nominal input voltage208-230 V
Nominal output voltage208-230 V
On/off switchY
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Package dimensions (WxDxH)102 x 152 x 1842 mm
Package weight6100 g
PDU typesMonitored
Power plugNEMA L6-20P
Rack capacity0U
RoHS complianceY
Storage temperature (T-T)-15 - 60 °C
Supported network protocolsIPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
TypeSingle-phase
Weight3860 g
Master AC outlets quantity20
Slave AC outlets quantity4
Product colourBlack

PDUMNV20HVLX.pdf

Tripp Lite 3.3–3.7kW Single-Phase Monitored PDU, LX Platform Interface, 208/230V Outlets (20 C13/4 C19), C20/L6-20P, 0U 1.8 m Data Sheet

Download (488.65k)
