Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
● 16/20A single phase 200-240V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
● Built-in 2 digit visual meter continuously reports PDU load level in amps
● C20 inlet with C20 input cable and L6-20P adapter; 3.7m line cord
● 1U horizontal rackmount format installs in one rack space
● 10 total outlets (8 C13 / 2 C19)
● Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
● Mounting ears are reversible for front or rear facing rackmount installation
● Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks Back panel grounding lug
● Metered single phase 16/20A 200-240V PDU
● 1U horizontal rackmount; Digital current meter
● C20 input with L6-20P plug adapter; 3.7m line cord
● 10 total outlets (8 C13, 2 C19)
● Reversible housing; 16.5 cm depth
Package Includes
● Rackmount PDU
● C19 to L6-20P plug adapter
● Rack mounting brackets
● 16/20A single phase 200-240V Metered Power Distribution Unit / PDU (Agency de-rated to 16A continuous)
● Built-in 2 digit visual meter continuously reports PDU load level in amps
● C20 inlet with C20 input cable and L6-20P adapter; 3.7m line cord
● 1U horizontal rackmount format installs in one rack space
● 10 total outlets (8 C13 / 2 C19)
● Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
● Mounting ears are reversible for front or rear facing rackmount installation
● Optional PDUSIDEBRKT enables 0U vertical rackmount in compatible racks Back panel grounding lug
● Metered single phase 16/20A 200-240V PDU
● 1U horizontal rackmount; Digital current meter
● C20 input with L6-20P plug adapter; 3.7m line cord
● 10 total outlets (8 C13, 2 C19)
● Reversible housing; 16.5 cm depth
Package Includes
● Rackmount PDU
● C19 to L6-20P plug adapter
● Rack mounting brackets
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 10 |
| Cable length | 3.7 m |
| Certification | UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), CE (IEC 60950) |
| Colour of product | Black |
| Dimensions (WxDxH) | 444 x 165 x 28.7 mm |
| Input connection type | NEMA L6-20P, IEC-320 C20 |
| Input frequency | 50/60 Hz |
| LED indicators | Yes |
| Material | Metal |
| Maximum current | 20 A |
| Mounting | Horizontal |
| Nominal input voltage | 200-240 V |
| Nominal output voltage | 200-240 V |
| Operating altitude | 0 - 3000 m |
| PDU types | Metered |
| Rack mounting | Yes |
| RoHS compliance | Yes |
| Storage temperature (T-T) | -15 - 50 °C |
| Weight | 3100 g |
Specific References
- EAN13
- 0037332159014

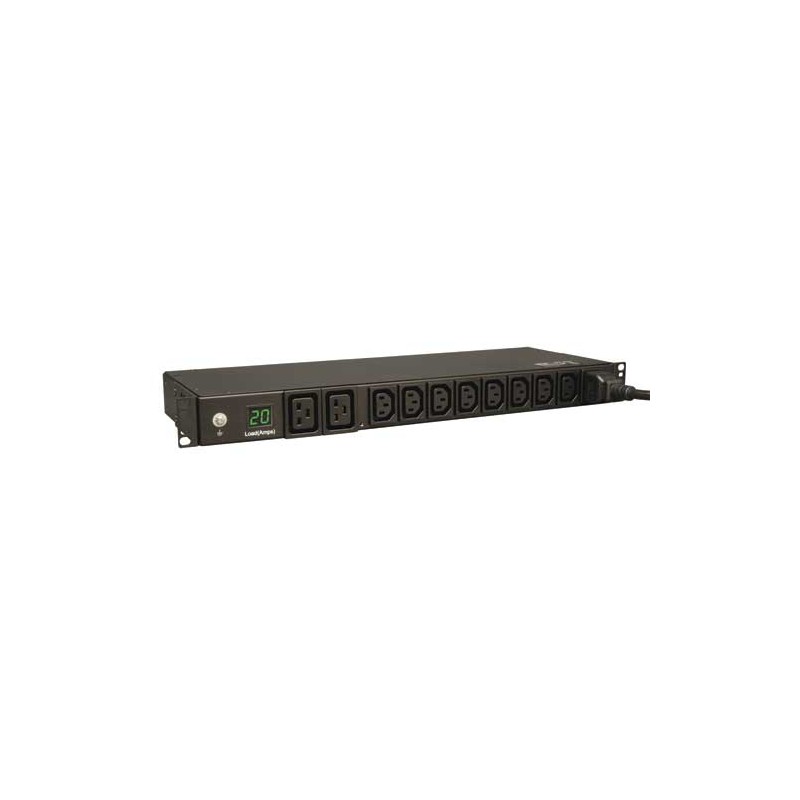

Tripp Lite 3.2-3.8kW Single-Phase Metered PDU, 200-240V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12ft Cord, 1U Rack-Mount
3.2-3.8kW Single-Phase Metered PDU, 200-240V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12ft Cord, 1U Rack-Mount
£216.09
£180.08 Ex. VAT
3.2-3.8kW Single-Phase Metered PDU, 200-240V (8 C13 & 2 C19), C20 / L6-20P Adapter, 12ft Cord, 1U Rack-Mount
