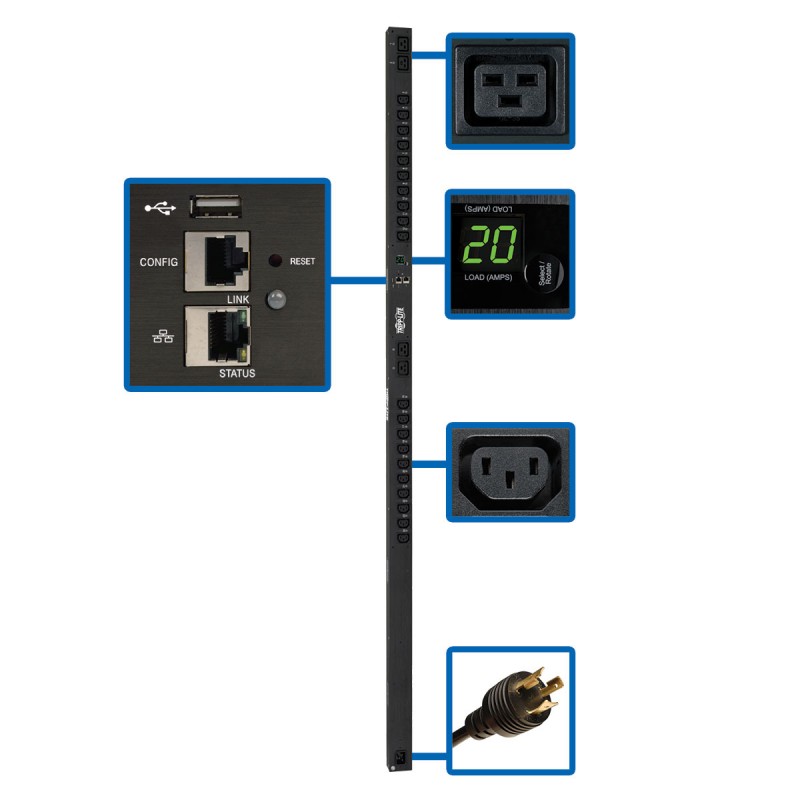

The PDUMV20HVNETLX 3.2–3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU’s C20 inlet to a compatible AC power source, generator or protected UPS.



The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.



A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.



Distributes Network-Grade Single-Phase Power



● 3.2–3.8kW 200/208/230/240V switched PDU

● Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components

● NEMA L6-20P plug with 3.05 m cord connects C20 inlet to compatible AC power source

● Firmware upgrades support future product enhancements



24 Switched Outlets Distribute AC Power



● 20 C13 and 4 C19 outlets split into 2 separately breakered load banks

● Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices

● Plug-lock inserts prevent cables from becoming accidentally disconnected



Digital Ammeter



● Reports load level on each bank and total PDU output

● Supports IP-address self-ID

● Rotates 180° for easy reading at either angle



Built-In LX Platform Interface



● Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH

● Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

● Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities

● No Java required



Broad Communications Compatibility



● Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP

● Supports automatic and manual assignment of IP address



Easy 0U Installation in EIA-Standard 19 in. Racks



● Mounts vertically using included toolless buttons or rack-mounting brackets

● Included PDUMVROTATEBRKT allows mounting with rear-facing outlets



● 3.2–3.8kW 200/208/230/240V switched PDU

● 24 individually controllable outlets—20 C13, 4 C19

● Built-in LX Platform interface for 24/7 remote access

● Digital ammeter for on-site load monitoring in real time

● NEMA L6-20P input with 3.05 m AC power cord



Package Includes



● PDUMV20HVNETLX 3.2–3.8kW Single-Phase Switched PDU

● Built-in LX Platform interface

● Detachable NEMA L6-20P to C19 power cord, 3.05 m

● Configuration cable

● (24) Plug-lock inserts

● Rack-mounting hardware

● PDUMVROTATEBRKT mounting bracket accessory

● Owner’s manual
