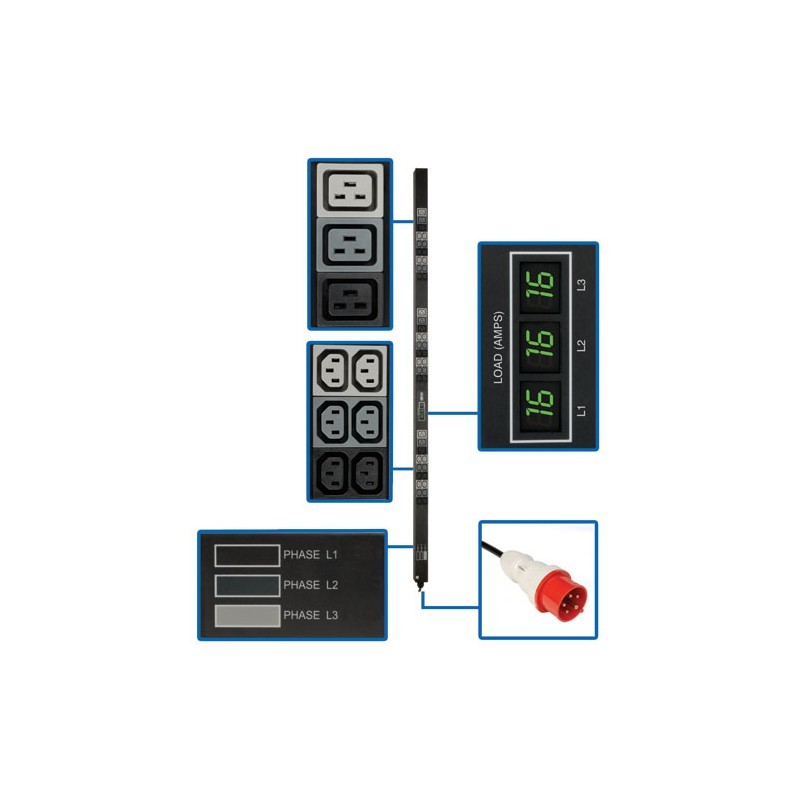

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
● 11.5kW Metered Power Distribution Unit (PDU)
● 415/400/380V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection
● 240/230/220V output with 36 C13 & 9 C19 single phase output receptacles
● Supports 50/60Hz worldwide applications with CE and North American certifications
● 0U / 1778mm vertical rackmount installation supported
● Outlets are arranged in 3 metered 15 outlet load banks
● Included cord retention brackets keep vital network equipment plugged in and continuously powered
● Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
● Metered 11.5kW 3 Phase 415/240V, 400/230V, 380/220V input / output PDU
● Set of 3 digital meters reports output load level per phase in amps
● 70in / 1778mm 0U vertical format, toolless button-mount installation
● IEC-309 Red 16/20A (3P+N+E) 3 phase input; 1.83 m line cord
● 36 C13 & 9 C19 single phase outlets; Included cord retention brackets
Package Includes
● Metered rackmount PDU with pre-installed mounting buttons
● Cord retention brackets
● Spare installation buttons (2 9mm / 4 6mm)
● Rack mounting brackets
● Owner's manual
AC outlet types |
C13 coupler, C19 coupler |
Cable length |
1.8 m |
Certification |
UL, CSA, NOM, CE |
Colour of product |
Black |
Dimensions (WxDxH) |
56 x 49 x 1778 mm |
Input connection type |
IEC-309 16A RED (3P+N+E) |
Input frequency |
50/60 Hz |
Load capacity |
11500 VA |
Material |
Steel |
Maximum current |
16 A |
Mounting |
vertical |
Nominal input voltage |
380-415 V |
Nominal output voltage |
220-240 V |
Operating relative humidity (H-H) |
0 - 95 % |
Package dimensions (WxDxH) |
109 x 1925 x 155 mm |
PDU types |
Metered |
Rack mounting |
0U |
RoHS compliance |
Yes |
Specific References
- EAN13
- 0037332163912
