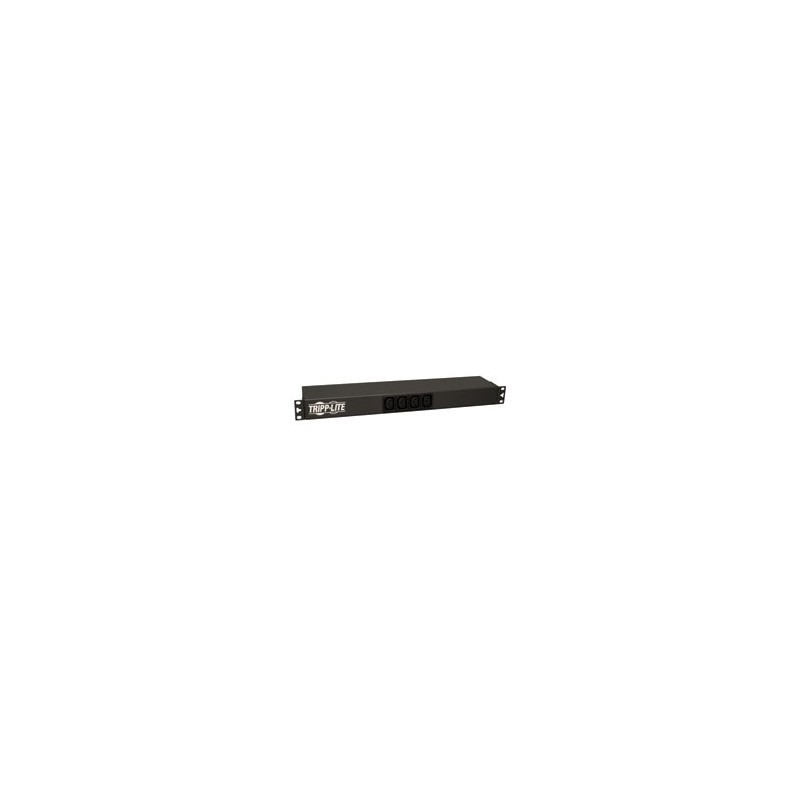

The PDUH20DV 1.6–3.8kW Single-Phase 100–240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH20DV features 14 total outlets—four C13 in front and eight C13 and two C19 in the rear.
The C20 input plug with detachable 3.7 m cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment. A NEMA L6-20P adapter is included for 208/240V power environments. The C20 inlet accepts any country-specific power cord with a C19 connector.
The switchless design prevents an accidental shutdown, which could lead to costly downtime. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.
Reliable Single-Phase 20A 100–240V Power Distribution
● Versatile no-frills PDU for data centers, server rooms and network wiring closets
● 14 total outlets—4 C13 in front, 8 C13 and 2 C19 in rear
● C20 input with detachable 3.66 m cord and NEMA L6-20P adapter
● Inlet accepts any country-specific power cord with C19 connector
● Rear-panel grounding lug
Switchless Design
● Prevents accidental shutdowns and costly downtime
Versatile Installation Options
● Reversible all-metal housing faces front or rear in rack
● Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks
● Also mounts on wall, workbench or under a counter
● C20 input with detachable 3.66 m cord and L6-20P adapter
● 14 total outlets—12 C13 and 2 C19
● Switchless design prevents accidental shutdown
● Reversible all-metal housing
● Installs in rack, on wall or under counter
Package Includes
● PDUH20DV 1.6–3.8kW Single-Phase 100–240V Basic PDU
● Detachable C19-to-C20 power cord
● NEMA L6-20P plug adapter
● Mounting brackets
● Owner’s manual
AC outlet types |
C13 coupler,C19 coupler |
AC outlets quantity |
14 AC outlet(s) |
Cable length |
3.7 m |
Certification |
UL 60950 (USA), CSA (Canada), CE (EU) |
Colour of product |
Black |
Dimensions (WxDxH) |
438 x 95 x 44.5 mm |
Input connection type |
NEMA L6-20P, IEC-320 C20 |
Input frequency |
50/60 Hz |
LED indicators |
Yes |
Material |
Metal |
Maximum current |
20 A |
Mounting |
Horizontal |
Nominal input voltage |
100-240 V |
Nominal output voltage |
100-240 V |
Operating altitude |
0 - 3000 m |
PDU types |
Basic |
Rack mounting |
1U |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-15 - 50 °C |
Weight |
1700 g |
Specific References
- EAN13
- 0012304448280
