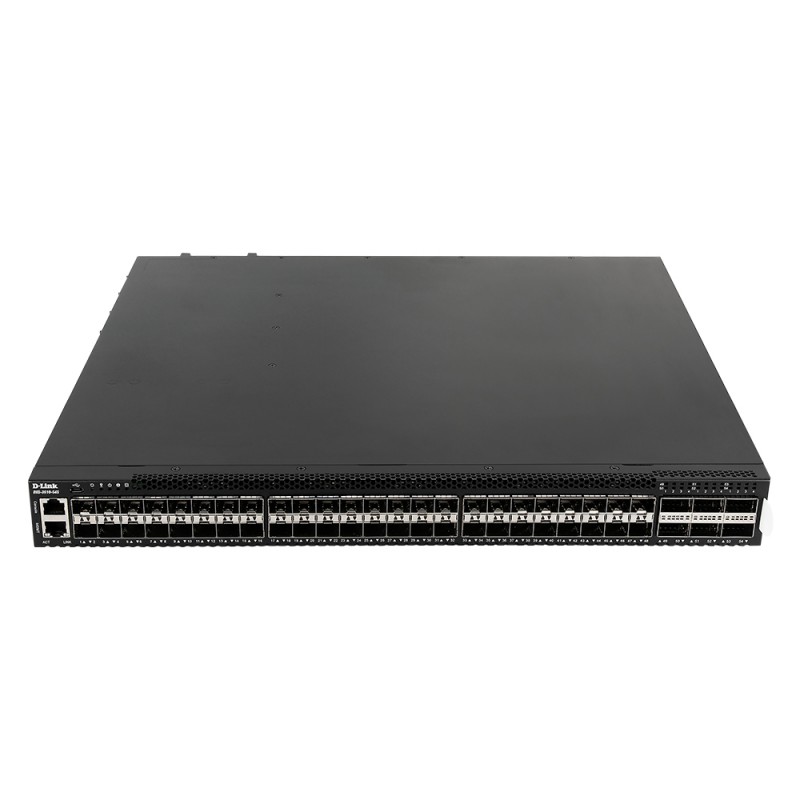

D-Link DXS-3610-54S Managed L3 None 1U Black
  • D-Link DXS-3610-54S Managed L3 None 1U Black
  • D-Link DXS-3610-54S Managed L3 None 1U Black
  • D-Link DXS-3610-54S Managed L3 None 1U Black
  • D-Link DXS-3610-54S Managed L3 None 1U Black
  • D-Link DXS-3610-54S Managed L3 None 1U Black
OpenFlow Switching that Stacks Above the Competition The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network. High Availability The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps. Hot-Swappable Redundancy The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules. Robust and Versatile Stacking Capability Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture. Enhanced Manageability for Peace of Mind For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 110 - 240 V
Access Control List (ACL) Y
Basic switching RJ-45 Ethernet ports type None
Certification CB, cUL, LVD
Console port RJ-45
Depth 487.44 mm
Electromagnetic compatibility FCC, CE, C-Tick, IC, VCCI
Flow control support Y
Form factor 1U
Forwarding rate 1607.04 Mpps
Full duplex Y
Head-of-line (HOL) blocking Y
Heat dissipation 1083 BTU/h
Height 43.5 mm
IGMP snooping Y
IP routing Y
Jumbo frames support Y
Link aggregation Y
MAC address table 294912 entries
Management protocols SNMP v1/v2c/v3
Mean time between failures (MTBF) 94262 h
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x
Noise level 79.4 dB
Number of fans 5 fan(s)
Number of queues 8
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) 0 - 45 °C
Packet buffer memory 32 MB
Physical stacking (units) 12
Port mirroring Y
Power consumption (max) 320.8 W
Power consumption (typical) 120.6 W
Power over Ethernet (PoE) No
Power supply included Y
Quality of Service (QoS) support Y
Rack mounting Yes
Redundant power supply (RPS) support Y
Spanning tree protocol Y
SSH/SSL support Y
Stackable Yes
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L3
Switch type Managed
Switching capacity 2211.84 Gbit/s
USB 2.0 ports quantity 1
Virtual stacking (units) 32
VLAN support Y
Web-based management Y
Weight 9800 g
Width 441 mm
ARP inspection Y
Jumbo frames 9436
SFP+ module slots quantity 48
BPDU filtering/protection Y
Static route Y
Product colour Black
Virtual LAN features MAC address-based VLAN,Port-based VLAN,Protocol-based VLAN
DHCP features DHCP client,DHCP server,DHCP snooping
QSFP28 ports quantity 6

Specific References

EAN13
0790069452116

dxs-3610-54ssi.pdf

D-Link DXS-3610-54S Data Sheet

D-Link DXS-3610-54S

DXS-3610-54S - Layer 3 Stackable 10G / 100G Managed, 48-port 10G SFP+, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 full load front-to-back AC PSUs and 5 front-toback fan modules
Out of Stock
£9,288.60
Tax excluded
Reference: DXS-3610-54S/SI
