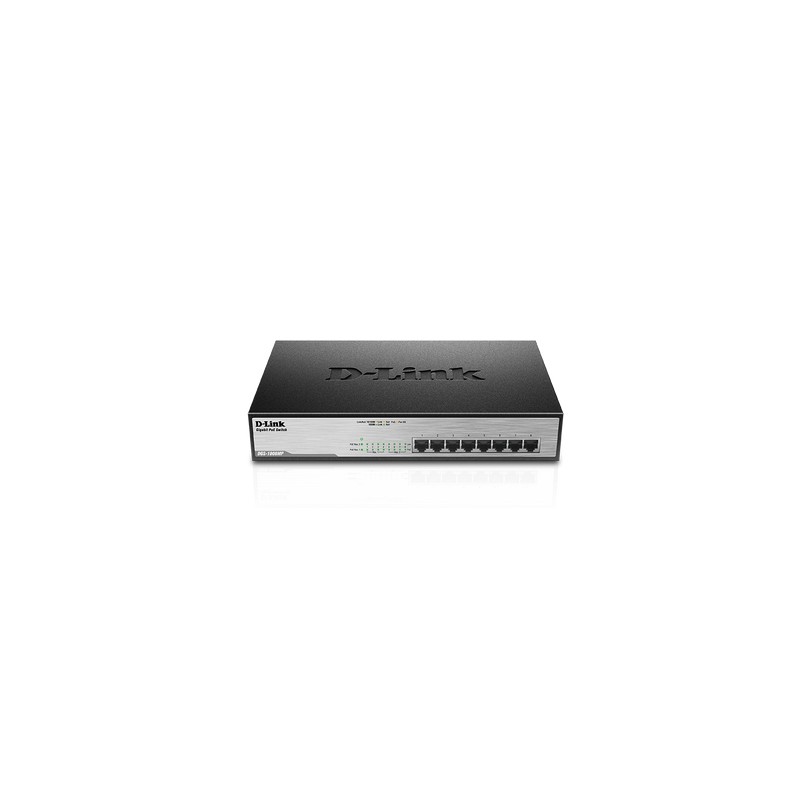

D-Link DGS-1008MP
  • D-Link DGS-1008MP
  • D-Link DGS-1008MP
  • D-Link DGS-1008MP
  • D-Link DGS-1008MP
Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.

The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.

No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.

DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productBlack
Depth180 mm
Form factor1U
Full duplexYes
Height44 mm
LED indicatorsYes
MAC address table8000 entries
Networking standardsIEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)13.5 W
Power over Ethernet (PoE)Yes
Rack mountingYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-10 - 70 °C
Switch typeUnmanaged
Total Power over Ethernet (PoE) budget140 W
Width280 mm
Packet forwarding rate (1 Gbps)14880 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)1488000 pps

DGS-1008MP.pdf

D-Link DGS-1008MP Data Sheet

Download (855.52k)
