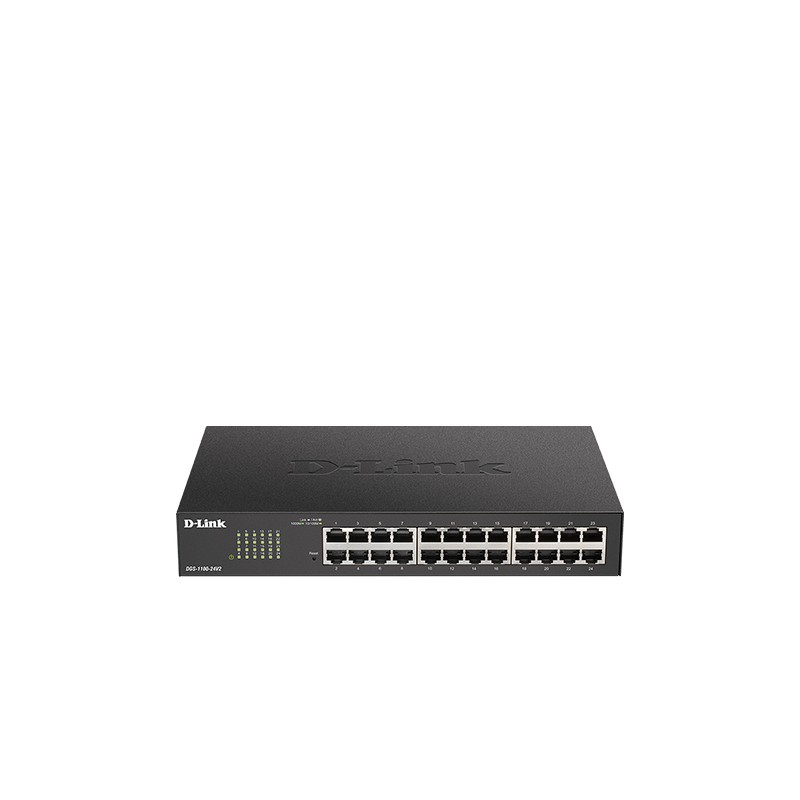

D-Link DGS-1100-24V2 network switch Managed Gigabit Ethernet (10/100/1000) Black 1U
  • D-Link DGS-1100-24V2 network switch Managed Gigabit Ethernet (10/100/1000) Black 1U
  • D-Link DGS-1100-24V2 network switch Managed Gigabit Ethernet (10/100/1000) Black 1U
  • D-Link DGS-1100-24V2 network switch Managed Gigabit Ethernet (10/100/1000) Black 1U
  • D-Link DGS-1100-24V2 network switch Managed Gigabit Ethernet (10/100/1000) Black 1U
Powerful Switching for your Business

The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.



Easy to Use & Easy to Install

D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.



VLANs: Stronger Security & Better Traffic Management

Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.



For Voice

If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.



For Surveillance

If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.



Green Technology

D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Auto MDI/MDI-X Y
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Built-in processor Y
Certification RoHS 6\ncUL, CE LVD, CB, BSMI, CCC
Depth 180 mm
Electromagnetic compatibility FCC A, CE A, VCCI A, C-Tick, BSMI, CCC
Flash memory 16 MB
Flow control support Y
Form factor 1U
Forwarding rate 35.71 Mpps
Head-of-line (HOL) blocking Y
Heat dissipation 54.3 BTU/h
Height 44 mm
IGMP snooping Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 8000 entries
Mean time between failures (MTBF) 424762 h
Multicast support Y
Networking standards IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3x
Number of queues 4
Number of VLANs 4094
Operating altitude 0 - 2000 m
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -5 - 50 °C
Packet buffer memory 4.1 MB
Port mirroring Y
Power consumption (max) 15.9 W
Power consumption (typical) 4.5 W
Power over Ethernet (PoE) No
Processor frequency 125 MHz
Rack mount kit Y
Rack mounting Yes
Rate limiting Y
Security algorithms SNMP,SSL/TLS
Spanning tree protocol Y
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Y
Switch type Managed
Switching capacity 48 Gbit/s
System event log Y
VLAN support Y
Web-based management Y
Weight 1470 g
Width 280 mm
Jumbo frames 9216
Queue scheduling algorithms SPQ,Weighted Round Robin (WRR)
Product colour Black
Virtual LAN features Port-based VLAN,Voice VLAN
DHCP features DHCP client
IGMP entries 64

Specific References

EAN13
0790069451775

dgs-1100-24v2.pdf

D-Link DGS-1100-24V2 Data Sheet

D-Link DGS-1100-24V2

24x 10/100/1000BASE-T, 48 Gbps, 35.71 Mpps, VLAN, 280x180x44 mm
Out of Stock
£129.56
Tax excluded
Reference: DGS-1100-24V2
Quantity
