D-Link DGS-1510-28XMP | Other D-Link Switches
  • D-Link DGS-1510-28XMP | Other D-Link Switches
  • D-Link DGS-1510-28XMP | Other D-Link Switches
  • D-Link DGS-1510-28XMP | Other D-Link Switches
The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G capability, available with 16, 24, or 48 10/100/1000 Mbps ports plus additional fibre ports for physical stacking or uplinks. The PoE-capable DGS-1510-28P and DGS-1510-28XMP switches provide additional flexibility for businesses looking to power IP phones, wireless access points, or IP cameras using existing network infrastructure. The combination of high bandwidth connections and PoE support make the DGS-1510 Series ideal for Small-Medium Enterprise (SME) and Small-Medium Business (SMB) environments.



10G SFP+ Stacking/Uplink Ports



The last two SFP+ ports of the DGS-1510 Series switches allow users to create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Cables (DACs) or any compatible SFP+ transceiver1. This creates a total of 288 Gigabit ports, ensuring high bandwidth while staying cost-efficient. Meanwhile, the remaining uplink ports can be used for other functions, such as connecting to a larger network. Users can also easily configure and manage any of the DGS-1510 Series Smart Managed switches in a single stack. With 20 Gbps full-duplex capabilities, the DGS-1510 Series offers 10G connectivity to core networks and servers while still maintaining fast data transfer rates.



Layer 3 Traffic Management



The DGS-1510 Series provides static routing, allowing you to segment your network into workgroups that communicate between VLANs and increase application performance. With these capabilities, you can reduce the load on your core devices, allowing you to create a scalable and efficient network.



Extensive Layer 2 Features



The DGS-1510 Series switches are equipped with a complete line-up of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection automatically detects and shuts down loops created by a specific port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and can quickly discover sections of cabling that need to be replaced.



Traffic Classification & QoS



The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart switches. This technology consolidates data and surveillance video transmissions through a single DGS-1510 Series Smart Managed switch, saving businesses the costs of maintaining expensive dedicated hardware and infrastructure. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data by giving ASV traffic priority over other packets.



Keep Your Network Secure



D-Link’s innovative Safeguard Engine protects the DGS-1510 Series against traffic flooding caused by malicious attacks. The DGS-1510 Series supports both MAC and web-based access control. This gives network administrators multiple authentication options, reducing deployment times and removing the need for client software. The DGS-1510 Series supports IEEE 802.1X port-based authentication, allowing network users to be authenticated through external RADIUS servers. The Address Resolution Protocol (ARP) Spoofing Prevention feature helps to prevent attacks that may allow an intruder to intercept users’ traffic while the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorised IP assignment.



IPv6 Ready



The DGS-1510 Series is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 security features, and IPv6 Quality of Service (QoS), ensuring seamless integration with next generation networks. The DGS-1510 Series also supports IPv4/v6 dual stack functionality, which allows the switches to act as a bridge between IPv4 and IPv6 networks.

1 When stacking in a linear typology, the remaining unused SFP+ ports in the stacking port pair of the top and bottom switches will also be considered occupied by the switch and cannot be used for any other purpose.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Access Control List (ACL) Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Yes
Cable types supported Cat5,Cat5e
Certification CE, FCC, C-Tick, VCCI, BSMI, CCC
Colour of product Black,Grey
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Depth 308 mm
DHCP client Yes
DHCP server Yes
Fiber optic connector SFP+
Flow control support Yes
Full duplex Yes
Head-of-line (HOL) blocking Yes
Heat dissipation 1487.78 BTU/h
Height 44 mm
IGMP snooping Yes
Jumbo frames support Yes
LED indicators Activity,Link,PoE,Power,Speed
Link aggregation Yes
MAC address table 16384 entries
Multicast support Yes
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Noise level 56.9 dB
Number of queues 8
Number of VLANs 4094
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -5 - 50 °C
Packet buffer memory 1.5 MB
Physical stacking (units) 6
Port mirroring Yes
Power consumption (max) 436.3 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 24
Quality of Service (QoS) support Yes
Safety cUL, CB
Security algorithms 802.1x RADIUS,EAP,SNMP,SSH,SSH-2,SSL/TLS
Spanning tree protocol Yes
SSH/SSL support Yes
Stackable Yes
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -20 - 70 °C
Store-and-forward Yes
Switch layer L2/L3
Switch type Managed
Switching capacity 128 Gbit/s
System event log Yes
Throughput 95.24 Mpps
Total Power over Ethernet (PoE) budget 370 W
Ventilation fan(s) 2
Virtual stacking (units) 32
VLAN support Yes
Weight 4250 g
Width 440 mm
Jumbo frames 9216
Access Control List (ACL) rules 768
SFP+ module slots quantity 4
BPDU filtering/protection Yes
Protocol-based VLAN Yes
MAC address auto-learning supported Yes
Authentication MAC-based authentication,Port-based authentication
Tagged VLAN Yes
Power over Ethernet (PoE) power per port 30 W
Traffic classification Yes

Specific References

EAN13
0790069413780

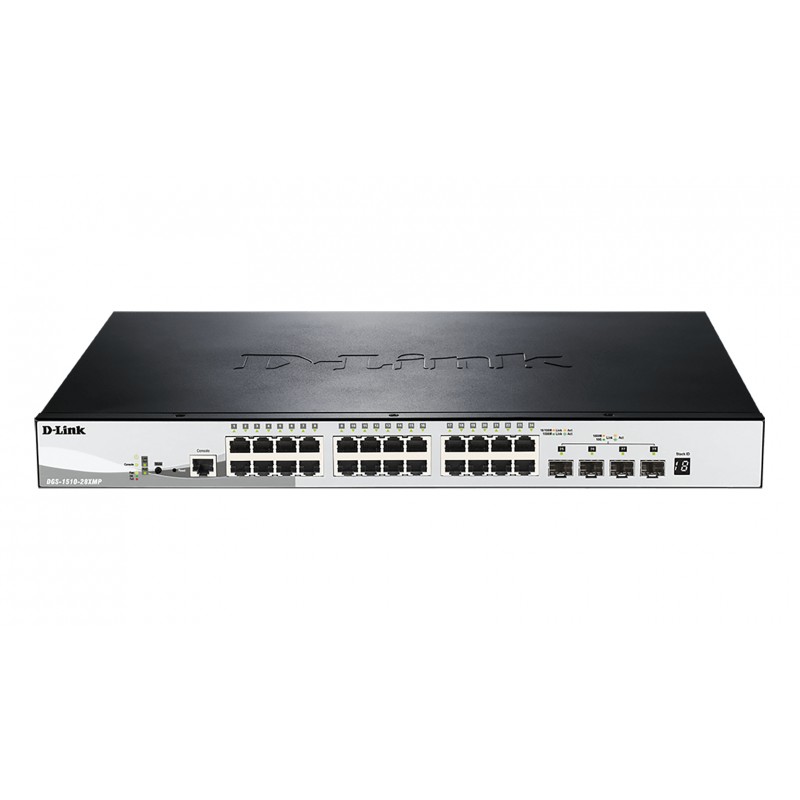

D-Link DGS-1510-28XMP

24x 10/100/1000 RJ-45, 4x 10G SFP+, PoE, 128 Gbps, 95.24 Mpps, 440 x 308 x 44 mm, 4.25 kg
Out of Stock
£760.70
£633.92 Ex. VAT
Reference: DGS-1510-28XMP
