26 Port Gigabit Max PoE Switch



DGS-1026MP

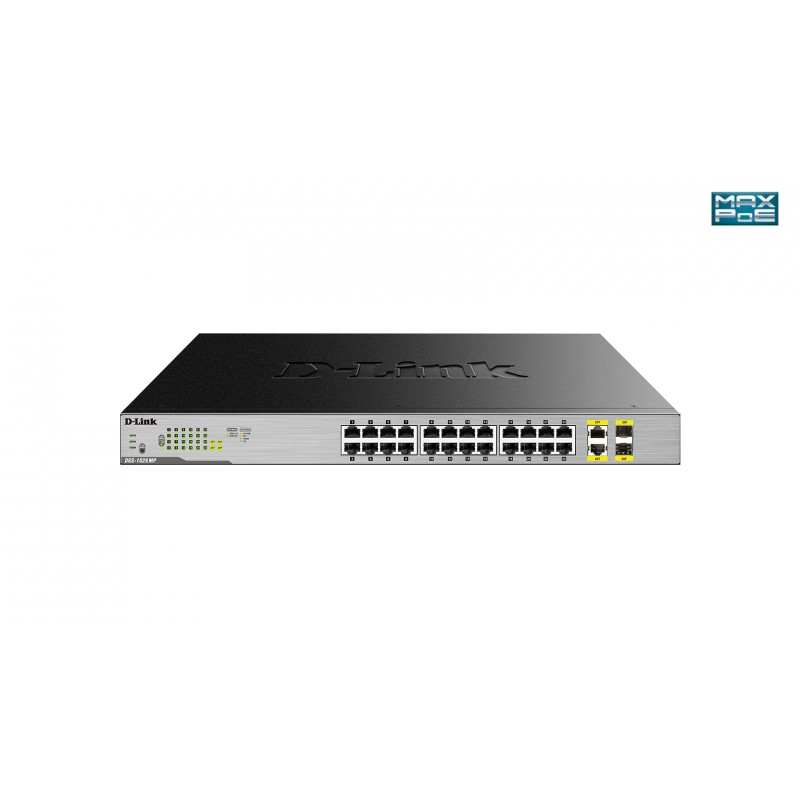

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.



Power over Ethernet

The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.

The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.



Expand Your Network

With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.



Energy Efficient

To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.



Hassle-Free Setup

The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.
AC input frequency 50/60 Hz
AC input voltage 100-240 V
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Buffer size 512 KB
Certification FCC Class A\nCE\nCCC\nRoHS\nVCCI\nBSMI\nRCM
Colour of product Black,Grey
Combo SFP ports quantity 2
Depth 250.4 mm
Heat dissipation 1515 BTU/h
Height 44 mm
LED indicators Activity,Link,PoE,Power,Power fail,Speed
MAC address table 8192 entries
Mean time between failures (MTBF) 205975 h
Networking standards IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H) 10 - 90 %
Operating temperature (T-T) 0 - 50 °C
Power consumption (max) 444.1 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 24
Safety UL/CSA 60950-1, EN 60950-1, IEC 60950-1
Storage relative humidity (H-H) 5 - 90 %
Storage temperature (T-T) -40 - 70 °C
Switch type Unmanaged
Switching capacity 52 Gbit/s
Throughput 38.69 Mpps
Total Power over Ethernet (PoE) budget 370 W
Ventilation fan(s) 2
Weight 3100 g
Width 440 mm
Installed SFP modules quantity 1
Power over Ethernet (PoE) power per port 30 W

Specific References

EAN13
0790069426667

Download

DGS-1026MP.pdf

D-Link DGS-1026MP Data Sheet

Download (496.55KB)

D-Link DGS-1026MP

Unmanaged, PoE, 52 Gbps, 24 x 10/100/1000 Mbps, 2 x 10/100/1000BASE-T/SFP, 38.69 Mpps, Store-and-forward, max. 82.1 W (PoE off)3.1 kg
