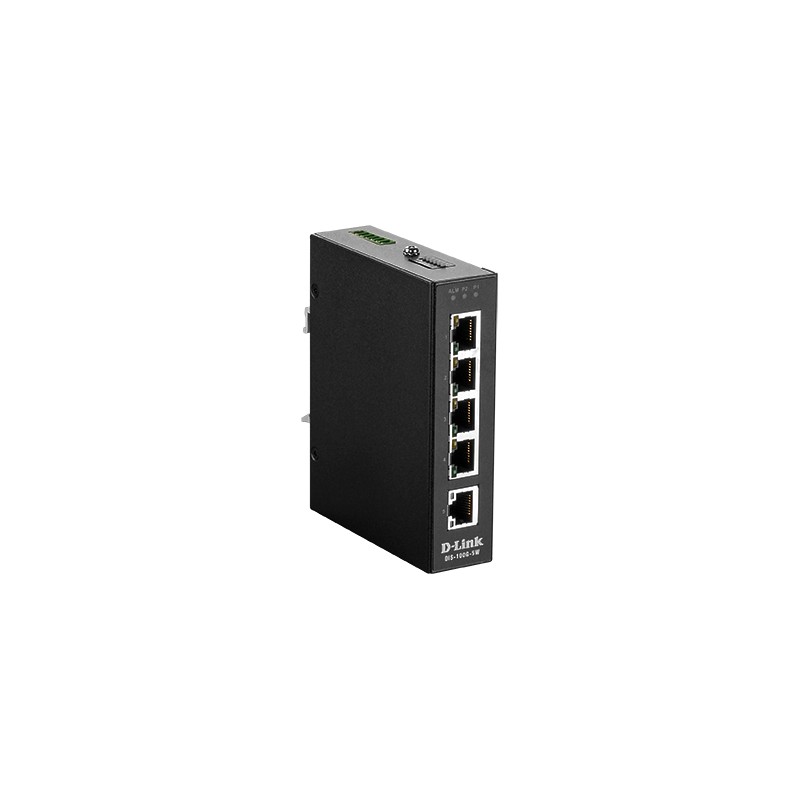

D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS‑100G‑5W Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.



Durable, Reliable, and Efficient

The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.



Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.



Power over Ethernet Support

The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.



Green Ethernet Technology

The DIS-100G Series features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during

periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.



Limited Lifetime Warranty

D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.
10G support No
Auto MDI/MDI-X Y
Auto-negotiation Y
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Certification IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE
Colour of product Black
DC input voltage 12 - 58 V
Depth 29.1 mm
Electromagnetic compatibility FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Flow control support Y
Forwarding rate 7.44 Mpps
Full duplex Y
Heat dissipation 12.18 BTU/h
Height 89.4 mm
Jumbo frames support Y
LED indicators LAN,Power
MAC address table 2000 entries
Multicast support Y
Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3z
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -40 - 75 °C
Power consumption (max) 3.57 W
Power over Ethernet (PoE) No
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 85 °C
Store-and-forward Y
Switch layer L2
Switch type Unmanaged
Switching capacity 10 Gbit/s
Wall mountable Y
Weight 300 g
Width 112.2 mm
Jumbo frames 9000
DIN rail mounting Y
Traffic shaping Y

Specific References

EAN13
0790069437908

Download

DIS-100G-5W.pdf

D-Link DIS‑100G‑5W Data Sheet

Download (555.37KB)

D-Link DIS‑100G‑5W

5x 100/1000BaseT, QoS, IP30, 112.2x29.1x89.4 mm
Out of Stock
£130.49
Tax excluded
Reference: DIS-100G-5W
Quantity
