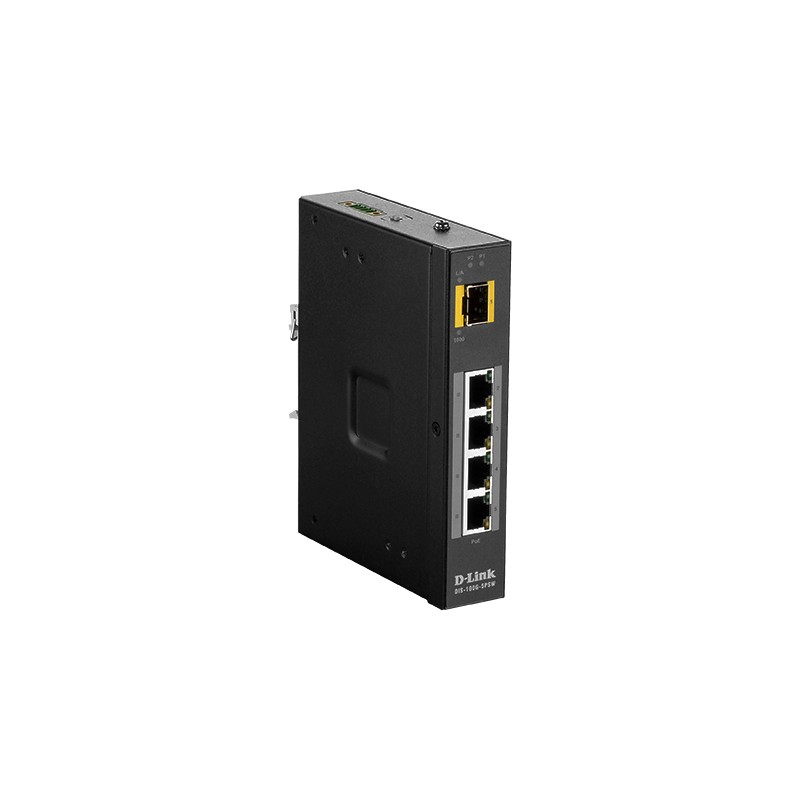

D-Link DIS‑100G‑5PSW
  • D-Link DIS‑100G‑5PSW
  • D-Link DIS‑100G‑5PSW
  • D-Link DIS‑100G‑5PSW
Unmanaged Plug and Play with SFP and PoE

Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.



Gigabit Connectivity with PoE and SFP slots

Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.



Officially Certified

Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.



Withstands Extreme Temperatures

Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.



Strong Build

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.



PoE Support

With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.



Fast Deployment

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.



Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.



Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.



- 4 x 100/1000BaseT PoE ports, 1 x 100/1000BaseSFP slots

- 120 W PoE Budget

- Unmanaged plug-and-play simplicity

- Withstands extreme temperatures

- Certified for vibration, shock, free-fall, EMC
10G supportN
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
CertificationIEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE
DC input voltage12 - 58 V
Depth29 mm
Electromagnetic compatibilityFCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Fiber optic connectorLC
Flow control supportY
Forwarding rate7.44 Mpps
Full duplexY
Heat dissipation410.12 BTU/h
Height107 mm
Jumbo frames supportY
LED indicatorsLAN,PoE,Power
MAC address table2000 entries
Multicast supportY
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-40 - 75 °C
Power consumption (max)120.2 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power protection featuresOver current,Reverse polarity
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-40 - 85 °C
Store-and-forwardY
Switch layerL2
Switch typeUnmanaged
Switching capacity10 Gbit/s
Total Power over Ethernet (PoE) budget120 W
Wall mountableY
Weight375 g
Width139 mm
Jumbo frames9000
SFP module slots quantity1
DIN rail mountingY
Traffic shapingY
Power over Ethernet (PoE) voltage range54 - 58 V
Product colourBlack

DIS-100G-5PSW.pdf

D-Link DIS‑100G‑5PSW Data Sheet

Download (555.37k)
