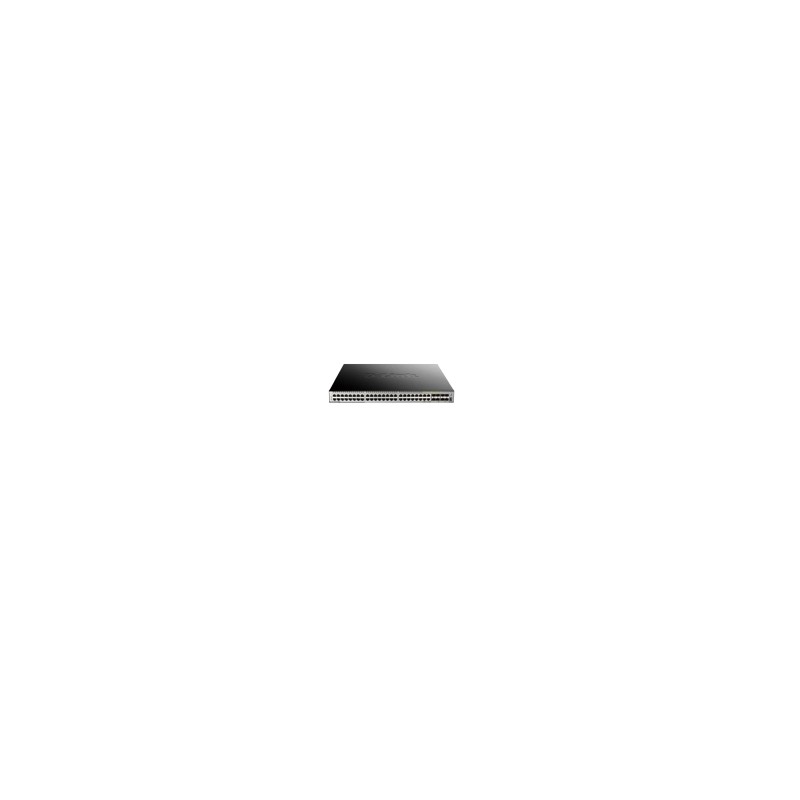

D-Link DGS-3630-52PC/SI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey network switch
  • D-Link DGS-3630-52PC/SI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey network switch
  • D-Link DGS-3630-52PC/SI Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black, Grey network switch
Outperforming the competition

The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.



Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility

- Industry-standard CLI

- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.



High Availability and Flexibility

Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.



Security, Performance & Availability

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
Access Control List (ACL) Y
Auto-negotiation Y
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Colour of product Black,Grey
Console port RJ-45/Mini-USB
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
Depth 380 mm
DHCP client Y
DHCP server Y
Electromagnetic compatibility CE, FCC A, C-Tick, VCCI, BSMI, CCC
Fiber optic connector SFP+
Flow control support Y
Full duplex Y
Head-of-line (HOL) blocking Y
Height 44 mm
IGMP snooping Y
IP routing Y
Jumbo frames support Y
Link aggregation Y
MAC address table 68000 entries
Multicast support Y
Networking standards IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at
Number of static routes 512
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 95 %
Operating temperature (T-T) -5 - 50 °C
Physical stacking (units) 9
Port mirroring Y
Power over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 48
Quality of Service (QoS) support Y
Redundant power supply (RPS) support Y
Routing entries 16000
Safety cUL, CB, CE, CCC, BSMI
Security algorithms 802.1x RADIUS,SNMP,SNMPv3,SSH,SSL/TLS
SSH/SSL support Y
Stackable Yes
Storage relative humidity (H-H) 5 - 95 %
Storage temperature (T-T) -40 - 70 °C
Switch layer L3
Switch type Managed
Switching capacity 176 Gbit/s
Total Power over Ethernet (PoE) budget 370 W
USB 2.0 ports quantity 1
Ventilation fan(s) 4
Virtual stacking (units) 32
VLAN support Y
Web-based management Y
Width 441 mm
Jumbo frames 12000
IP-MAC-Port binding Y
Private VLAN Y
SFP+ module slots quantity 4
BPDU filtering/protection Y
Port-based VLAN Y
Protocol-based VLAN Y
Loop protection Y
Power over Ethernet (PoE) power per port 30 W
MAC-based VLAN Y
Ethernet Ring Protection Switching (ERPS) Y
Static route Y

D-Link DGS-3630-52PC/SI

48x 1G RJ-45, 4x 10G SFP+, 176 Gbps, PoE, VLAN, 441 x 380 x 44 mm
Out of Stock
£5,401.61
£4,501.34 Ex. VAT
Reference: DGS-3630-52PC/SI
Quantity
