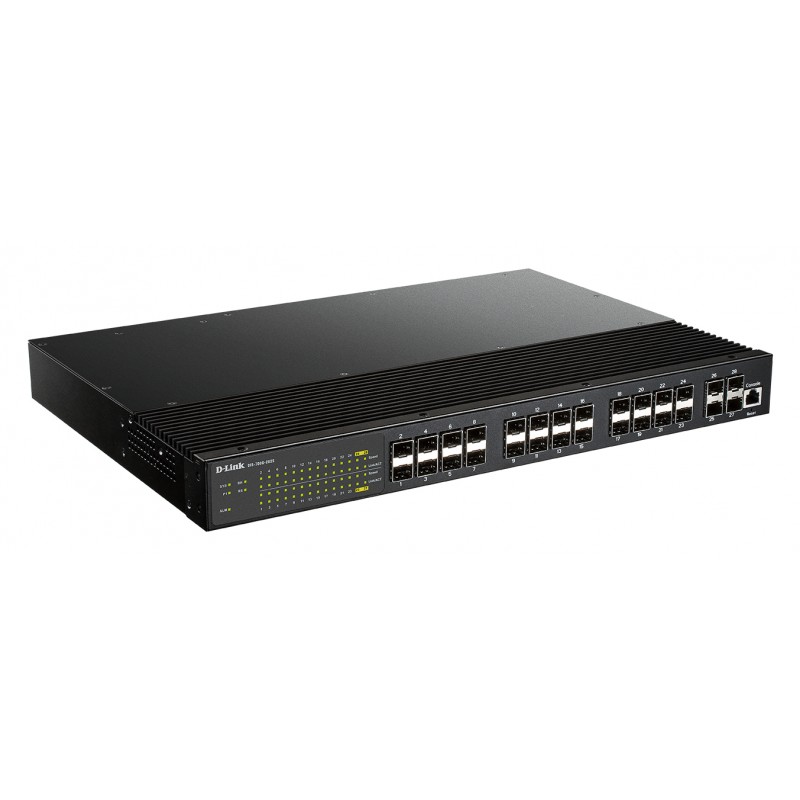

Layer 2+ Managed Customization
For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
Gigabit Connectivity with SFP slots
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from –10°C to +65°C, and can cold start from -10°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
10G support |
Yes |
AC input frequency |
50 ~ 60 Hz |
AC input voltage |
100/240 V |
Console port |
RJ-45 |
Depth |
318.5 mm |
Form factor |
1U |
Height |
44 mm |
MAC address table |
8000 entries |
Multicast support |
Y |
Networking standards |
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1v,IEEE 802.1w,IEEE 802.3x |
Operating relative humidity (H-H) |
5 - 95 % |
Operating temperature (T-T) |
-10 - 65 °C |
Power consumption (typical) |
35 W |
Quality of Service (QoS) support |
Y |
Rack mounting |
Yes |
Switch layer |
L2+ |
Switch type |
Managed |
USB 2.0 ports quantity |
1 |
VLAN support |
Y |
Weight |
4500 g |
Width |
440 mm |
Installed SFP modules quantity |
24 |
Installed SFP+ modules quantity |
4 |
Traffic shaping |
Y |
Power connector |
DC-in jack |
Product colour |
Black |
Multicast VLAN |
Y |
