D-Link DGS-3630-28PC/SI
  • D-Link DGS-3630-28PC/SI
  • D-Link DGS-3630-28PC/SI
Outperforming the competition

The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.



Versatile Management

The DGS-3630 Series provides:

- Network Assistant Utility

- Industry-standard CLI

- Intuitive web-based management interface

Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.

A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.



High Availability and Flexibility

Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.

Scale your network using just a stacking cable and without the need for stacking modules.

Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.



Security, Performance & Availability

Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.

The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.
10G supportYes
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Access Control List (ACL)Y
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity20
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Colour of productBlack,Grey
Combo SFP ports quantity4
Console portRJ-45/Mini-USB
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Depth380 mm
DHCP clientY
DHCP serverY
Electromagnetic compatibilityCE, FCC A, C-Tick, VCCI, BSMI, CCC
Fiber optic connectorSFP+
Flow control supportY
Full duplexY
Head-of-line (HOL) blockingY
Height44 mm
IGMP snoopingY
IP routingY
Jumbo frames supportY
Link aggregationY
MAC address table68000 entries
Multicast supportY
Networking standardsIEEE 802.1AX,IEEE 802.1D,IEEE 802.1Qbb,IEEE 802.1ag,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at
Number of static routes512
Number of VLANs4000
Operating relative humidity (H-H)10 - 95 %
Operating temperature (T-T)-5 - 50 °C
Packet buffer memory4 MB
Physical stacking (units)9
Port mirroringY
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Quality of Service (QoS) supportY
Redundant power supply (RPS) supportY
Routing entries16000
SafetycUL, CB, CE, CCC, BSMI
Security algorithms802.1x RADIUS,SNMP,SNMPv3,SSH,SSL/TLS
SSH/SSL supportY
StackableYes
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-40 - 70 °C
Switch layerL3
Switch typeManaged
Switching capacity128 Gbit/s
Total Power over Ethernet (PoE) budget370 W
USB 2.0 ports quantity1
Ventilation fan(s)4
Virtual stacking (units)32
VLAN supportY
Web-based managementY
Width441 mm
Jumbo frames12000
IP-MAC-Port bindingY
Private VLANY
SFP+ module slots quantity4
BPDU filtering/protectionY
Port-based VLANY
Protocol-based VLANY
Loop protectionY
Power over Ethernet (PoE) power per port30 W
MAC-based VLANY
Ethernet Ring Protection Switching (ERPS)Y
Static routeY

Similar products

  • D-Link DGS-3630-28SC
    D-Link DGS-3630-28SC
  • D-Link DGS-1510-28XMP
    D-Link DGS-1510-28XMP
  • D-Link DGS-3630-28TC
    D-Link DGS-3630-28TC
  • D-Link DGS-1008MP
    D-Link DGS-1008MP
  • D-Link DGS-3630-52TC
    D-Link DGS-3630-52TC

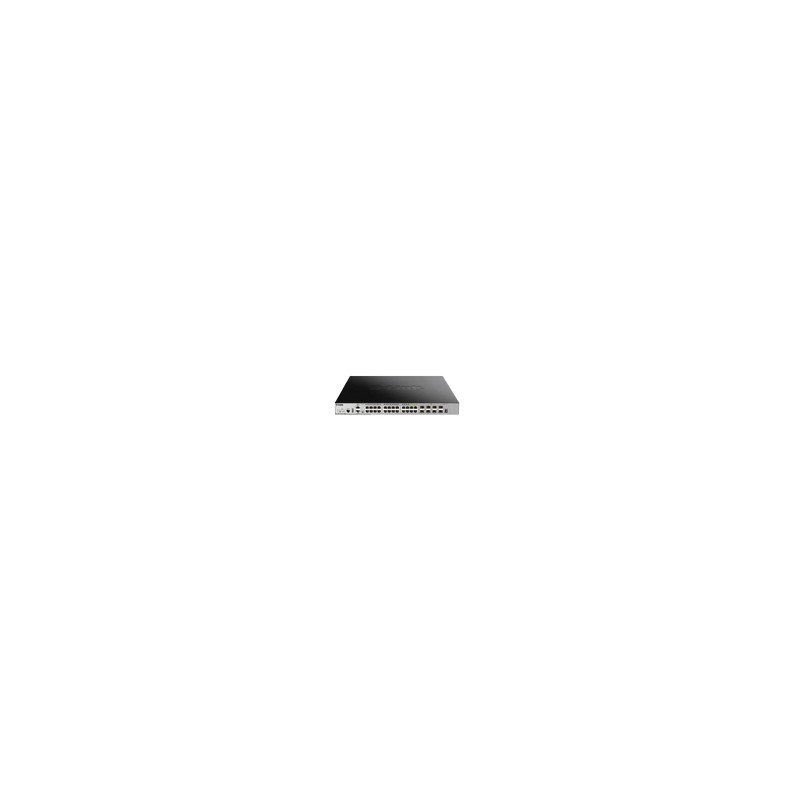

D-Link DGS-3630-28PC/SI

20x 1G RJ-45, 4x 1000BASE-T SFP, 4x 10G SFP+, 128 Gbps, PoE, VLAN, 441 x 380 x 44 mm

DGS-3630-28PC/SI

Out of Stock

£2,877.26
£2,397.72 Ex VAT.
