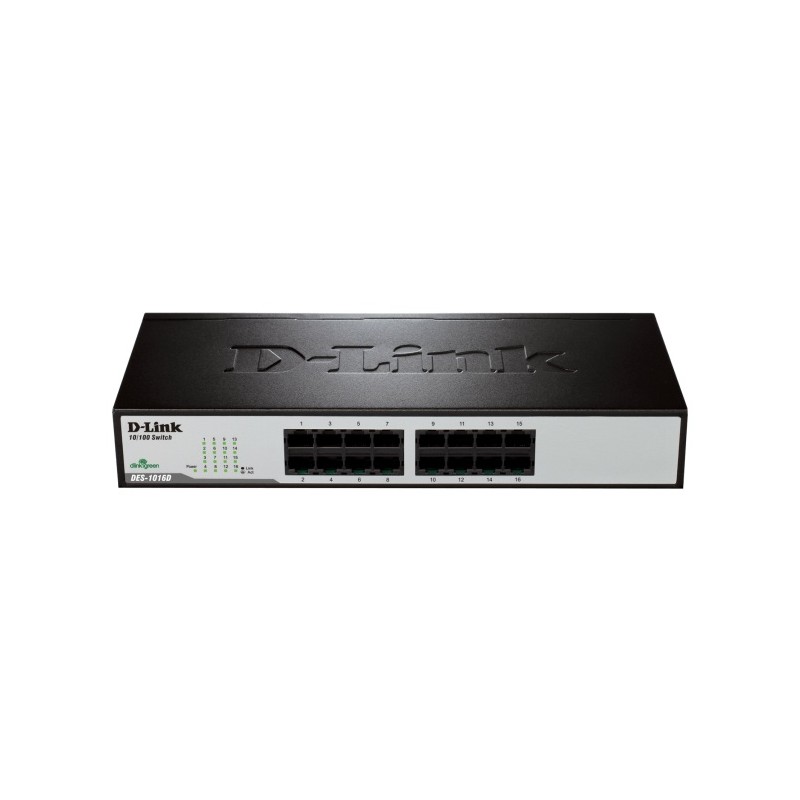

D-Link DES-1016D
  • D-Link DES-1016D
  • D-Link DES-1016D
  • D-Link DES-1016D
  • D-Link DES-1016D
The DES-1016D 16-Port Fast Ethernet Unmanaged Desktop Switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.



Ideal for Basic Networking Tasks

With the D-Link DES-1016D, you can easily expand your network by adding more computers or devices with speeds up to 200 Mbps per port in full-duplex mode.



Auto-Sensing 10/100 Ports

The DES-1016D use auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to 10 or 100 Mbps devices to create an integrated network. Each port automatically adjusts for straight-through or crossover cables to make the right link.



Flow Control for Secure Transmission

802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full.



Quality of Service (QoS)

The switches provide 802.1p priority queues for QoS, allowing users to run bandwidth-sensitive applications such as multimedia and VoIP Internet telephone without data flow bottlenecks that can degrade the quality of the network connection.



Save on Energy Costs

The switches support IEEE802.3az EEE which enables the switches to reduce power consumption when the switches are at low utilization, allowing users to save on power usage and costs. During these periods of low utilization, the switches can enter a low-power state and use up less power than regular operations.
10G supportN
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XY
Auto-sensingY
Basic switching RJ-45 Ethernet ports quantity16
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
CertificationFCC Class A, ICES-003 Class A, CE Class A, C-Tick Class A, VCCI Class A, LVD, cUL
Colour of productBlack
Copper ethernet cabling technology100BASE-TX,10BASE-T
Depth125.8 mm
Flow control supportY
Full duplexY
Heat dissipation9.86 BTU/h
Height44 mm
Internal memory2 MB
LED indicatorsActivity,Link,Power,power
MAC address table8000 entries
Maximum data transfer rate0.2 Gbit/s
Mean time between failures (MTBF)2266559 h
Networking standardsIEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)2.89 W
Power over Ethernet (PoE)N
Quality of Service (QoS) supportY
Rack mountingN
StackableN
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-10 - 70 °C
Store-and-forwardY
Supported network protocolsCSMA/CD
Switch typeUnmanaged
Switching capacity3.2 Gbit/s
Width280 mm

DES-1016DB.pdf

D-Link DES-1016D Data Sheet

Download (733k)

Similar products

  • D-Link DGS-3630-28SC
    D-Link DGS-3630-28SC
  • D-Link DGS-1510-28XMP
    D-Link DGS-1510-28XMP
  • D-Link DGS-3630-28TC
    D-Link DGS-3630-28TC
  • D-Link DGS-1008MP
    D-Link DGS-1008MP
  • D-Link DGS-3630-52TC
    D-Link DGS-3630-52TC

D-Link DES-1016D

16x 10/100Base-TX, 3.2 Gb/s, 8K MAC, MDI/MDIX, CSMA/CD, Black

DES-1016D/B

Out of Stock

£48.38
£40.32 Ex VAT.
