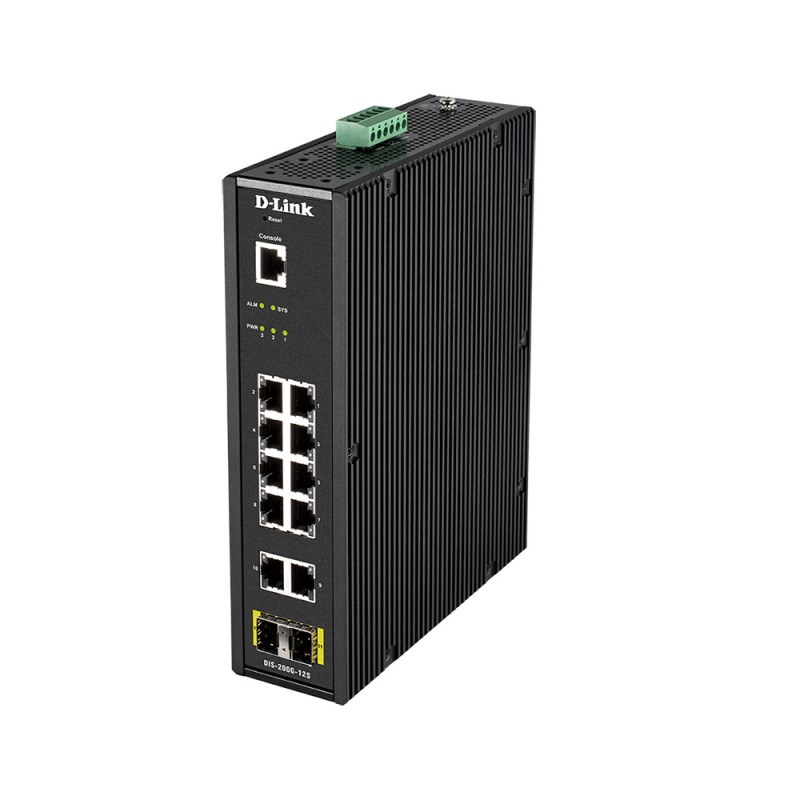

D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • D-Link DIS-200G-12S network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12S furthermore integrates advanced management and security functions to provide a complete solution.



Durable and Reliable Design



The DIS-200G-12S switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects DIS-200G-12S from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G-12S while also being able to operate in a wider temperature range of up to 65 °C. For increased flexibility, the DIS-200G-12S switch can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.



Additionally, the DIS-200G-12S switch features 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The in-built surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting the amount of power through required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.



High Redundancy and Reliability



The DIS-200G-12S switch supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.



Surveillance Traffic Optimization



The DIS-200G-12S switch supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.



Easy Troubleshooting



The DIS-200G-12S switch features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
10G support No
Auto MDI/MDI-X Y
Auto-negotiation Y
Basic switching RJ-45 Ethernet ports quantity 10
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Certification CE, FCC, BSMI\nEN 61000-4-2 ESD\nEN 61000-4-3 RS\nEN 61000-4-4 EFT\nEN 61000-4-5\nEN 61000-4-6 CS\nEN 61000-4-8\nIEC 60068-2-27\nIEC 60068-2-32\nIEC 60068-2-6
Console port RJ-45
Copper ethernet cabling technology 10BASE-T,100BASE-TX,1000BASE-T
DC input voltage 12 - 48 V
Depth 48 mm
DoS attack prevention Y
Electromagnetic compatibility CISPR 22, FCC Part 15B Class A
Fiber ethernet cabling technology 1000BASE-X
Flow control support Y
Forwarding rate 17.85 Mpps
Full duplex Y
Gigabit Ethernet (copper) ports quantity 10
Heat dissipation 35.01 BTU/h
Height 210 mm
Housing material Metal
IGMP snooping Y
International Protection (IP) code IP30
Jumbo frames support Y
LED indicators Y
Link aggregation Y
MAC address table 8000 entries
Management protocols SNMP v1/v2c/v3, SNTP, Telnet
Mean time between failures (MTBF) 276773 h
Multicast support Y
Networking standards IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of VLANs 4094
Operating relative humidity (H-H) 0 - 95 %
Operating temperature (T-T) -40 - 65 °C
Package depth 355 mm
Package height 76 mm
Package weight 2074 g
Package width 217 mm
Port mirroring Y
Power consumption (max) 10.26 W
Power over Ethernet (PoE) No
Quality of Service (QoS) support Y
Rack mounting Yes
Safety UL60950-1
Security algorithms 802.1x RADIUS,SSL/TLS
Spanning tree protocol Y
Storage relative humidity (H-H) 0 - 95 %
Storage temperature (T-T) -40 - 85 °C
Store-and-forward Y
Switch layer L2
Switch type Managed
Switching capacity 24 Gbit/s
System event log Y
VLAN support Y
Wall mountable Y
Web-based management Y
Width 171.2 mm
Jumbo frames 9216
Installed SFP modules quantity 2
Authentication Port-based authentication
DIN rail mounting Y
Pallet width 1200 mm
Pallet length 1100 mm
Active link detection Y
Authentication type RADIUS
Configuring Location Settings (CLI) Y
Queue scheduling algorithms SPQ,Weighted Round Robin (WRR)
Product colour Black
Shipping (inner) case width 372 mm
Shipping (inner) case length 409 mm
Shipping (inner) case height 252 mm
Virtual LAN features Voice VLAN,Tagged VLAN,Port-based VLAN
DHCP features DHCP client
Shipping (inner) case net weight 10370 g
Quantity per shipping (inner) case 5 pc(s)
Shipping (inner) case gross weight 11200 g
Pallet gross weight (air) 268800 g
Number of cartons per pallet (air) 24
Quantity per pallet (air) 120 pc(s)
Pallet height (air) 1143 mm
Pallet gross weight (sea) 470400 g
Number of cartons per pallet (sea) 42
Quantity per pallet (sea) 210 pc(s)
Pallet height (sea) 1899 mm

Specific References

EAN13
0790069433535

dis-200g-12s.pdf

D-Link DIS-200G-12S Data Sheet

D-Link DIS-200G-12S

Layer 2 Industrial Managed Switch, 10 x 10/100/1000Base-T RJ-45, 2 x 1000Base-X SFP
