Cloud Networking, Refreshed
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
| 10G support | No |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Y |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | Y |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 210 mm |
| Flash memory | 32 MB |
| Forwarding rate | 77.4 Mpps |
| Heat dissipation | 118.92 BTU/h |
| Height | 44.5 mm |
| IGMP snooping | Y |
| Internal memory | 256 MB |
| LED indicators | Y |
| Link aggregation | Y |
| Mean time between failures (MTBF) | 400667 h |
| Memory type | DDR3-SDRAM |
| Networking standards | IEEE 802.3ad |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -5 - 50 °C |
| Package depth | 552 mm |
| Package height | 98 mm |
| Package weight | 4603 g |
| Package width | 354 mm |
| Packet buffer memory | 12 MB |
| Power consumption (max) | 34.85 W |
| Power over Ethernet (PoE) | No |
| Processor frequency | 700 MHz |
| Security algorithms | WPA,WPA2 |
| Spanning tree protocol | Y |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch type | Managed |
| Switching capacity | 104 Gbit/s |
| Web-based management | Y |
| Weight | 3460 g |
| Width | 440 mm |
| Pallet width | 1200 mm |
| Pallet length | 1100 mm |
| Product colour | Grey |
| Shipping (inner) case width | 314 mm |
| Shipping (inner) case length | 562 mm |
| Shipping (inner) case height | 383 mm |
| Shipping (inner) case net weight | 13809 g |
| Quantity per shipping (inner) case | 3 pc(s) |
| Shipping (inner) case gross weight | 14740 g |
| Pallet gross weight (air) | 284820 g |
| Number of cartons per pallet (air) | 18 |
| Quantity per pallet (air) | 54 pc(s) |
| Pallet height (air) | 1284 mm |
| Pallet gross weight (sea) | 462200 g |
| Number of cartons per pallet (sea) | 30 |
| Quantity per pallet (sea) | 90 pc(s) |
| Pallet height (sea) | 2050 mm |
Specific References
- EAN13
- 0790069442971

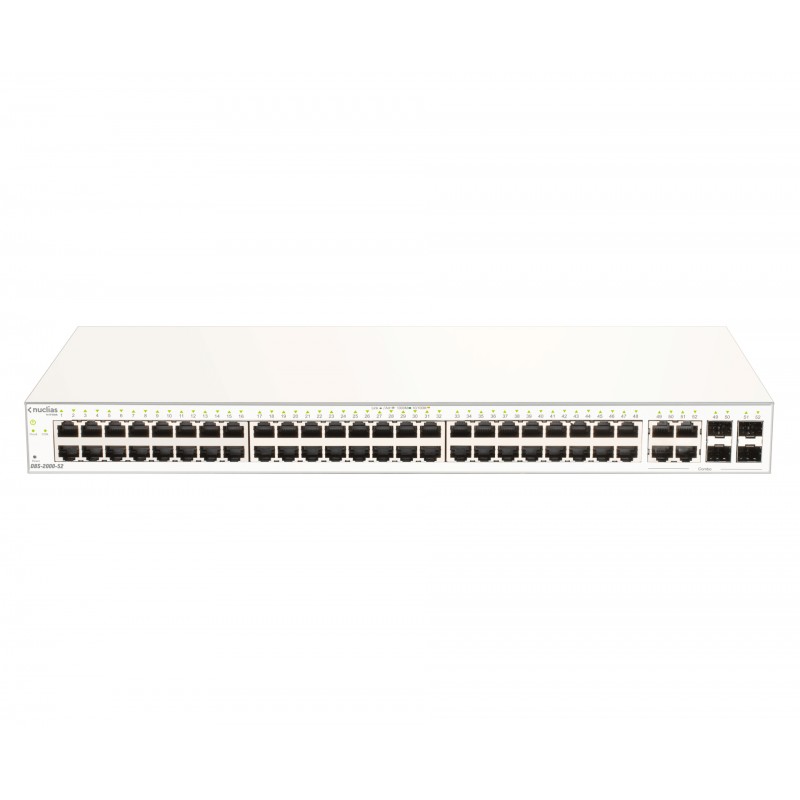

D-Link DBS-2000-52
DBS-2000-52, 104 Gbps, 77.4 Mpps, 48x 1G RJ-45, 2x 1G SFP/RJ-45, 700MHz, 256MB DDR3, 440x210x44 mm
£526.64
£438.86 Ex. VAT
DBS-2000-52, 104 Gbps, 77.4 Mpps, 48x 1G RJ-45, 2x 1G SFP/RJ-45, 700MHz, 256MB DDR3, 440x210x44 mm
