Unmanaged Plug and Play

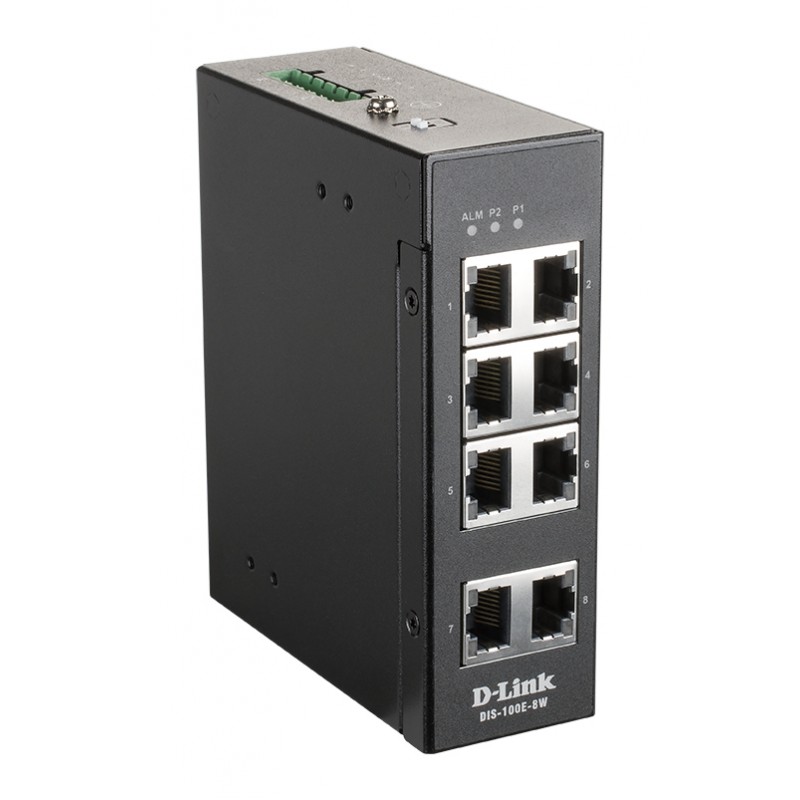

Plug in and go. The DIS-100E-8W reliably forwards Ethernet frames.
Fast Ethernet Connectivity
Designed with 8 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.
Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
- https://eu.dlink.com/uk/en/-/media/business_products/dis/100e/dis_100e_series_datasheet_en_eu.pdf
Plug in and go. The DIS-100E-8W reliably forwards Ethernet frames.
Fast Ethernet Connectivity
Designed with 8 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.
Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
- https://eu.dlink.com/uk/en/-/media/business_products/dis/100e/dis_100e_series_datasheet_en_eu.pdf
| 10G support | No |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Broadcast storm control | Y |
| Certification | UL 60950‑1 \nCE\nFCC |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,100BASE-T |
| DC input voltage | 12 - 58 V |
| Depth | 96.9 mm |
| Flow control support | Y |
| Full duplex | Y |
| Height | 117.8 mm |
| International Protection (IP) code | IP30 |
| MAC address table | 1000 entries |
| Mean time between failures (MTBF) | 219000 h |
| Networking standards | IEEE 802.3x |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | -40 - 75 °C |
| Plug and Play | Y |
| Power consumption (max) | 1.64 W |
| Power consumption (typical) | 1.41 W |
| Power over Ethernet (PoE) | No |
| Rack mounting | Yes |
| Stackable | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Store-and-forward | Y |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Wall mountable | Y |
| Weight | 405 g |
| Width | 39 mm |
| DIN rail mounting | Y |
| Product colour | Black |
| Relay outputs | 1 |
Similar products
-
D-Link DES-105
-
D-Link DGS-3630-28SC
-
D-Link DGS-1510-28XMP
-
D-Link DGS-3630-28TC
-
D-Link DGS-1008MP
D-Link DIS-100E-8W
8 x 10/100BaseT(X), IEEE 802.3x, 10/100 Mbps, 12‑58 VDC, 1.64W
DIS-100E-8W
Out of Stock
£207.30
£172.75 Ex VAT.
