D-Link DIS‑300G‑8PSW
  • D-Link DIS‑300G‑8PSW
  • D-Link DIS‑300G‑8PSW
  • D-Link DIS‑300G‑8PSW
Managed Customization

Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-8PSW is easy to manage and provides the security and controls to guard and shape your network needs.



Gigabit Connectivity with PoE and SFP slots

Designed with 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, and 2 x 100/1000BaseSFP slots to suit a range of devices and network layouts.



Officially Certified

Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.



Withstands Extreme Temperatures

Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.



Strong Build

The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.



High Availability

Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.



PoE Support

With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.



Fast Deployment

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.



Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.



Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.



- 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, 2 x 100/1000BaseSFP slots

- 120 W PoE Power Budget

- High availability

- Easy-to-control management interfaces and security

- Withstands extreme temperatures

- Certified for vibration, shock, free-fall, EMC
10G supportN
Auto MDI/MDI-XY
Auto-negotiationY
Basic switching RJ-45 Ethernet ports quantity6
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Broadcast storm controlY
CertificationIEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
DC input voltage48 - 58 V
Depth154 mm
DHCP clientY
DHCP serverY
Electromagnetic compatibilityFCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Fiber optic connectorLC
Firmware upgradeableY
Flow control supportY
Full duplexY
Height128 mm
International Protection (IP) codeIP30
Jumbo frames supportY
LED indicatorsAlarm,LAN,PoE,Power
Link aggregationY
MAC address table8000 entries
MIB supportRFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Multicast supportY
Networking standardsIEEE 802.1D,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
Number of VLANs1024
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)-40 - 75 °C
Power consumption (max)265 W
Power consumption (typical)14 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power protection featuresOver current,Reverse polarity
Quality of Service (QoS) supportY
Security algorithmsHTTPS,SNMP,SNMPv3,SSH
Spanning tree protocolY
Storage temperature (T-T)-40 - 85 °C
Store-and-forwardY
Switch layerL2
Switch typeManaged
System event logY
Total Power over Ethernet (PoE) budget120 W
VLAN supportY
Wall mountableY
Web-based managementY
Weight1308 g
Width71 mm
Jumbo frames9000
SFP module slots quantity2
Port-based VLANY
Protocol-based VLANY
DIN rail mountingY
Tagged VLANY
Power over Ethernet (PoE) power per port60 W
System logY
Traffic shapingY
Power over Ethernet (PoE) voltage range54 - 58 V
DHCP snoopingY
DHCP relayY
IP subnet–based VLANY
Authentication typeIEEE 802.1x,RADIUS
Queue scheduling algorithmsSPQ,Weighted Round Robin (WRR)
Product colourBlack
MAC address-based VLANY

DIS-300G-8PSW.pdf

D-Link DIS‑300G‑8PSW Data Sheet

Download (665.68k)

Similar products

  • D-Link DGS-3630-28SC
    D-Link DGS-3630-28SC
  • D-Link DGS-1510-28XMP
    D-Link DGS-1510-28XMP
  • D-Link DGS-3630-28TC
    D-Link DGS-3630-28TC
  • D-Link DGS-1008MP
    D-Link DGS-1008MP
  • D-Link DGS-3630-52TC
    D-Link DGS-3630-52TC

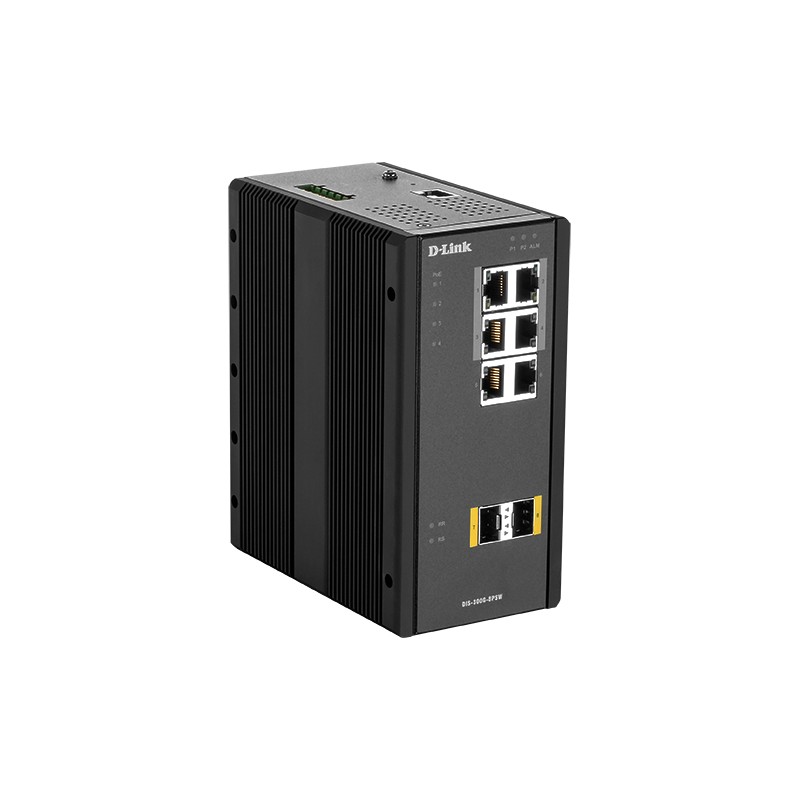

D-Link DIS‑300G‑8PSW

4x 100/1000BaseT PoE, 2x 100/1000BaseT, 2x 100/1000BaseSFP, 1024 VLANs, QoS, IP30, 71x154x128 mm

DIS-300G-8PSW

Out of Stock

£1,257.77
£1,048.14 Ex VAT.
