Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot

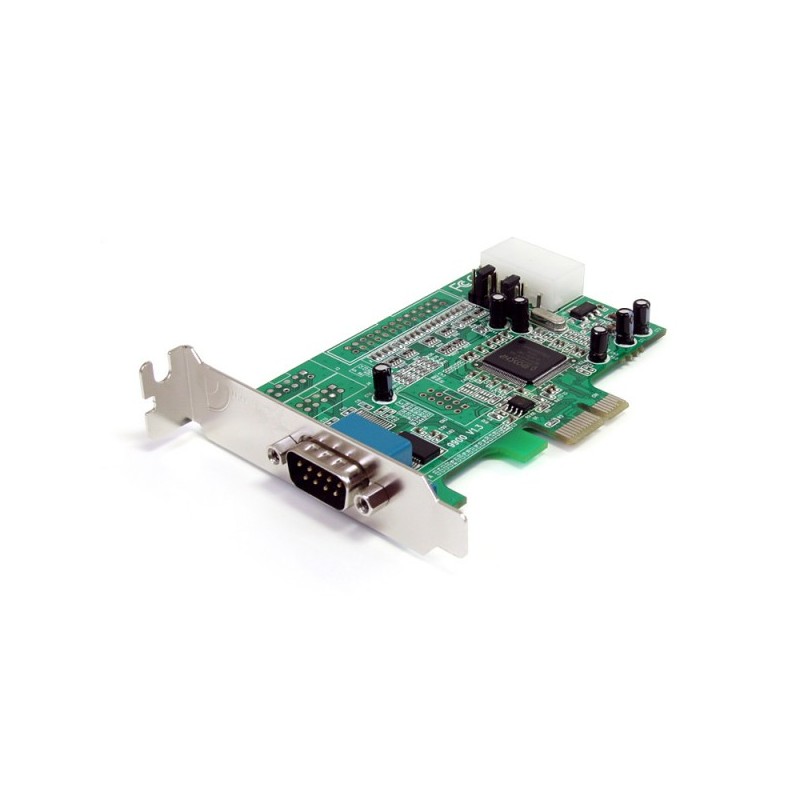

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX1S552LP card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
- Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility
- Easy to install and use with full step-by-step instructions saving time and hassle
Chipset |
MosChip MSC9922CV-AA |
Compatible operating systems |
DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0,
Linux,
Mac OS 10.4.x |
Connectivity technology |
Wired |
Depth |
105 mm |
Height |
20 mm |
Host interface |
PCIe |
Operating relative humidity range |
5 - 85 % |
Package weight |
160 g |
Ports quantity |
1 |
Serial ports quantity |
1 |
Source data-sheet |
Icecat.biz |
Storage temperature range (T-T) |
-40 - 85 °C |
Weight |
51.5 g |
Width |
80 mm |
Specific References
- EAN13
- 0065030841733
