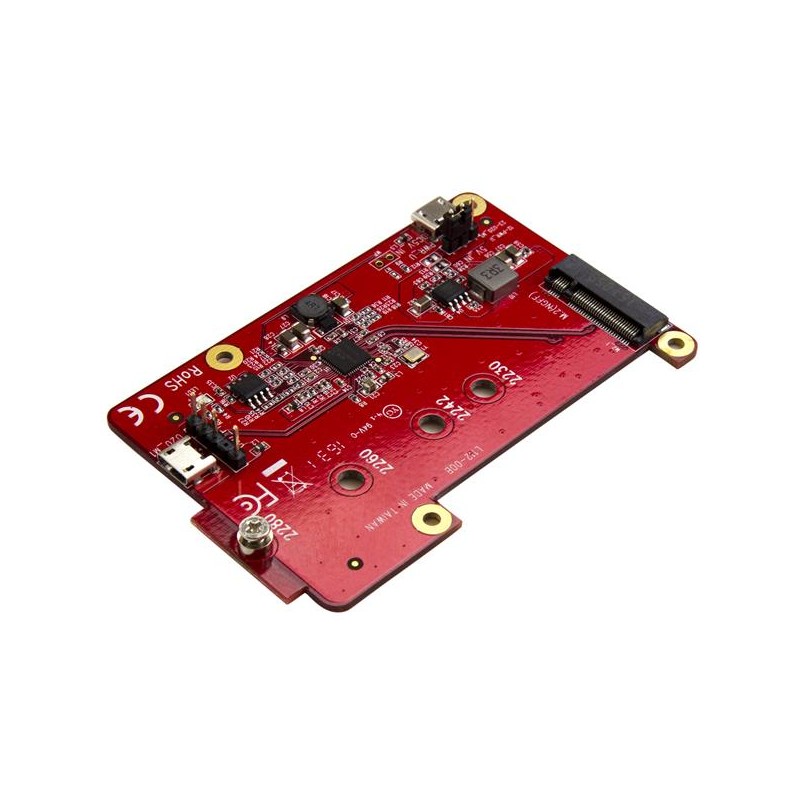

Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to an M.2 NGFF SATA SSD. Perfect for custom projects and applications, this USB to M.2 SATA converter supports all models of Raspberry Pi as well as other development boards.



Add storage capacity to your development board

This convenient USB 2.0 to M.2 SATA converter lets you overcome data storage limitations of your development board by enabling you to connect an M.2 SATA drive through your board’s USB-A port.



A convenient integrated solution

The USB to M.2 SATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.



Easy to install

Compatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.



StarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Note:

This converter works with M.2 SATA SSDs only. To see which type of M.2 drive you have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).



Raspberry Pi is a trademark of the Raspberry Pi Foundation
Cables included USB
Certification CE, FCC
Chipset Renesas - µPD720231A
Colour of product Red
Data transfer rate (max) 6 Gbit/s
Depth 88 mm
Height 11 mm
Host interface micro-USB
Internal Yes
Mean time between failures (MTBF) 5839751 h
Operating relative humidity (H-H) 15 - 90 %
Operating temperature (T-T) 5 - 50 °C
Output interface M.2
Package depth 170 mm
Package height 30 mm
Package volume 100 cm³
Package width 142 mm
Quick installation guide Yes
RoHS compliance Yes
Storage temperature (T-T) -25 - 70 °C
USB powered Yes
Weight 21.8 g
Width 56 mm

Specific References

EAN13
0065030867849

Download

PIB2M21.pdf

StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards Data Sheet

Download (160.46KB)

StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards

StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards - M.2 NGFF SATA SSD Adapter
In Stock
£25.73
Tax excluded
Reference: PIB2M21
Quantity
