Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

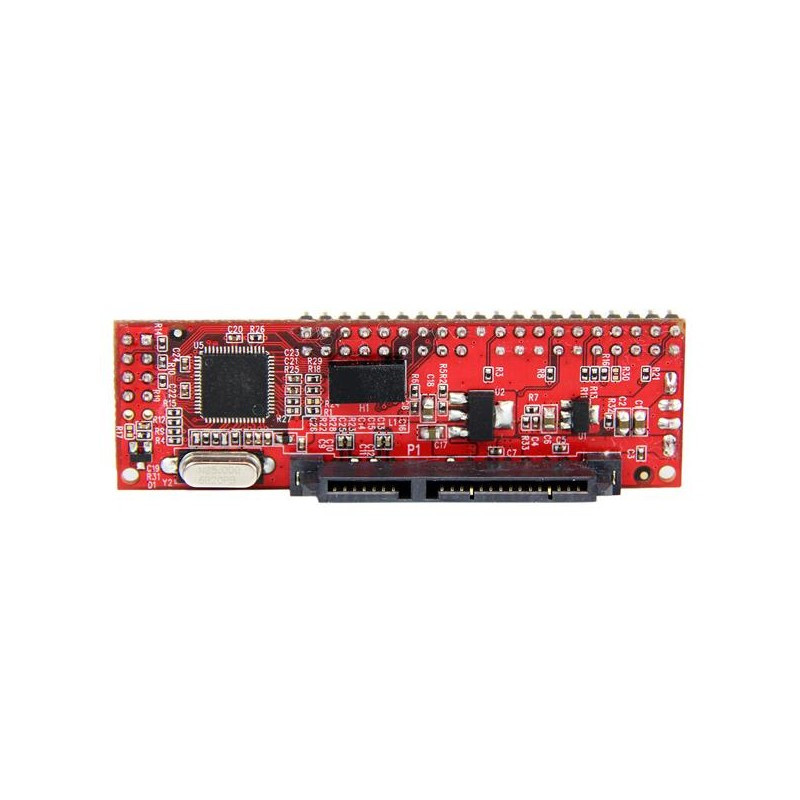

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle-free installation, with no software CD required
- Backed by a StarTech.com 2 year warranty and free lifetime technical support
Certification |
FCC, CE |
Chipset |
Marvell - 88SA8852 |
Colour of product |
Red |
Connector(s) |
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
Data transfer rate (max) |
0.133 Gbit/s |
Depth |
75.5 mm |
Height |
23 mm |
Internal |
Yes |
Logical block addressing (LBA) support |
48 bit |
Operating temperature (T-T) |
5 - 50 °C |
Package weight |
80 g |
RoHS compliance |
Yes |
Storage temperature (T-T) |
-25 - 80 °C |
Weight |
15 g |
Specific References
- EAN13
- 0650308522584
