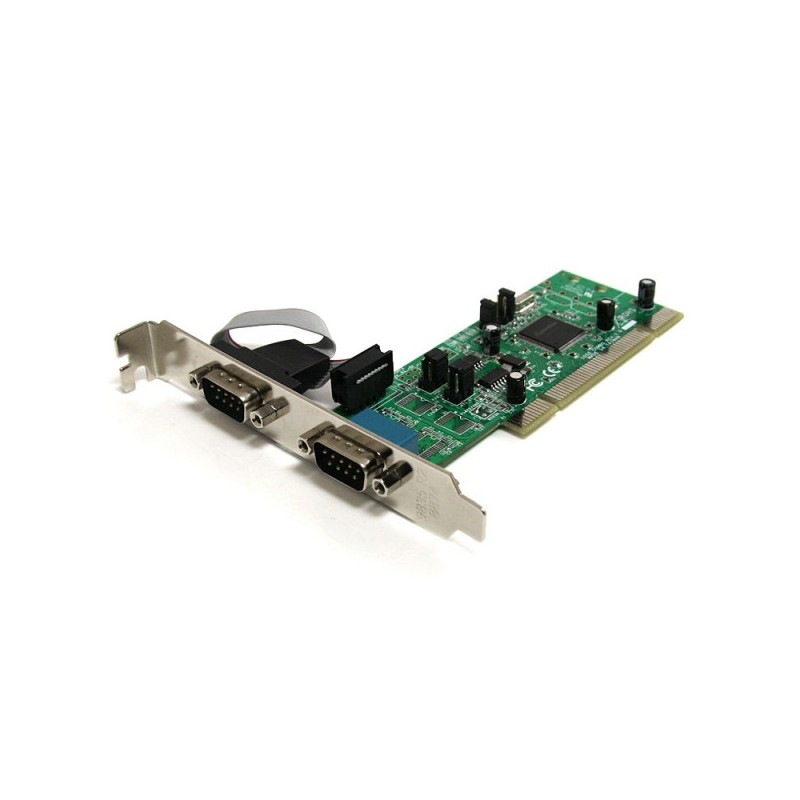

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.
The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.
With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
- A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
- Standard and low profile/half-height bracket included, ensuring easy installation into almost any system
Chipset |
SystemBase SB16C1052PCI |
Compatible operating systems |
Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64), Windows Server 2008 R2/ 2003(32/64)/ 2000, Linux 2.4.x/ 2.6.x |
Depth |
120 mm |
Height |
45 mm |
Host interface |
PCI |
Serial interface type |
RS-422, RS-485 |
Source data-sheet |
Icecat.biz |
Storage temperature range (T-T) |
-40 - 85 °C |
Width |
15 mm |
Specific References
- EAN13
- 0065030842587
