Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot

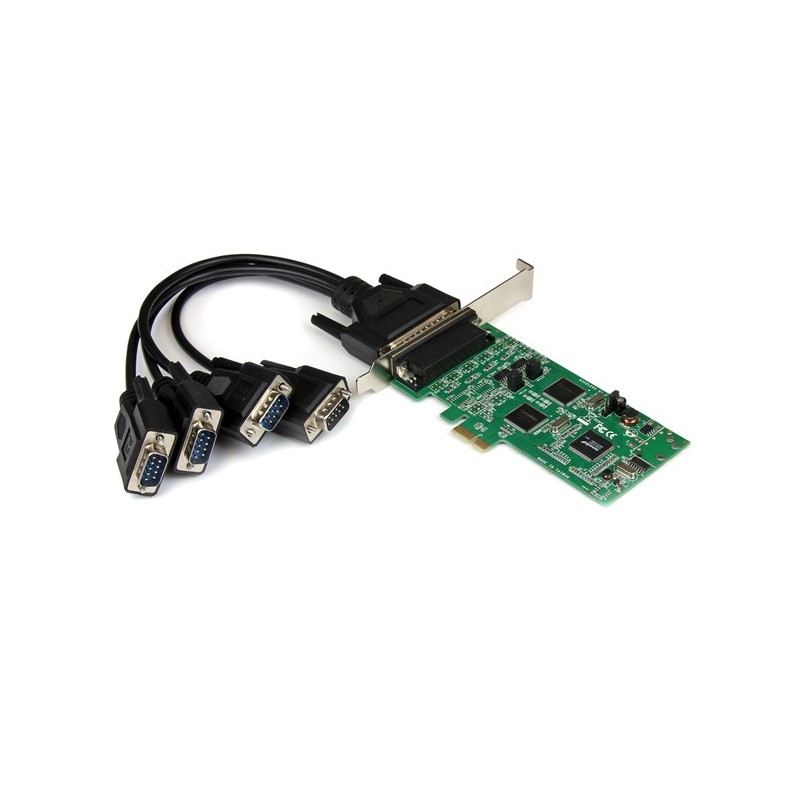

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card - 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- This single PCI Express combo card is compatible with any serial device protocol (RS232, RS422, and RS485), allowing for communication with multiple devices over mixed protocols
- Includes both low profile/half-height and full profile brackets to ensure fitment into a broad range of system form factors
- The included breakout cable saves expense as an all-in-one solution, and allows the addition of multiple serial ports through a single PCI Express slot
Chipset |
SystemBase SB16C1052PCI |
Connectivity technology |
Wired |
Data transfer rate |
0.4608 Mbit/s |
FIFO (First In, First Out) |
256 B |
Height |
20 mm |
Host interface |
PCIe |
Linux operating systems supported |
Yes |
Operating relative humidity range |
20 - 80 % |
Operating temperature range (T-T) |
0 - 100 °C |
Serial interface type |
RS-232/422/485 |
Source data-sheet |
Icecat.biz |
Storage temperature range (T-T) |
0 - 150 °C |
Weight |
67.4 g |
Windows operating systems supported |
Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, |
Specific References
- EAN13
- 0065030849357
