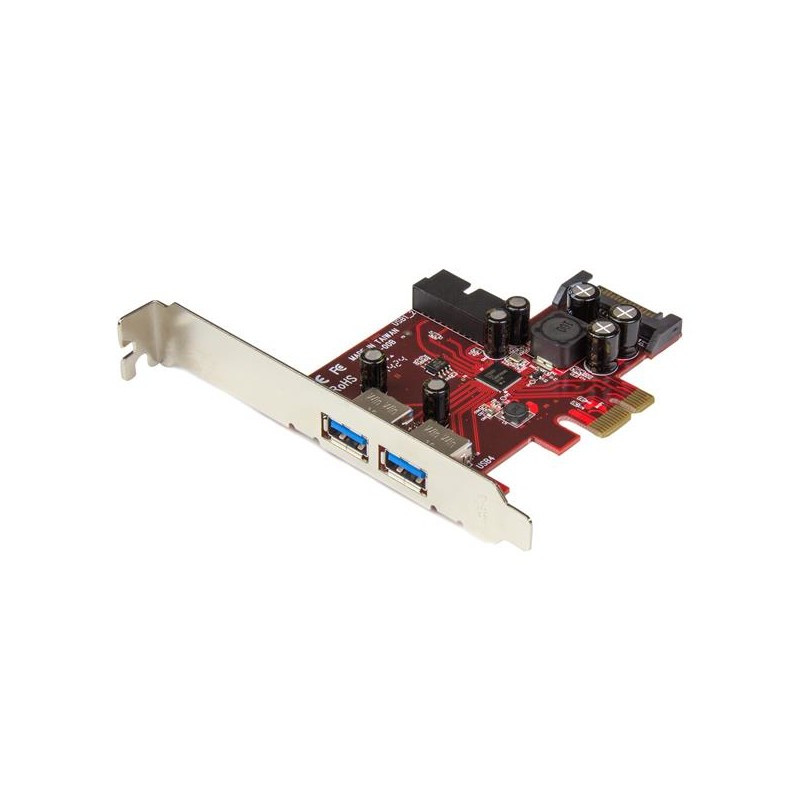

4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power
  • 4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power
  • 4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power
  • 4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power
  • 4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power
  • 4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power
Add front or rear panel USB 3.0 ports to your computer case using USB 3.0 motherboard-style headers

This PCI Express USB 3.0 card offers a cost-effective upgrade that lets you add four USB 3.0 ports to your computer through a PCIe slot. It offers two external ports plus two internal USB 3.0 headers to help adapt your desktop or server to support a variety of USB 3.0 devices.

Flexible and convenient port design

With extra motherboard-style USB 3.0 headers you have the flexibility to add more internal USB 3.0 devices to your PC. When your existing headers are occupied, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard and computer upgrades.

For added convenience, the card integrates two external USB 3.0 ports, so you can plug in more devices such as external hard drives or printers.

Simple installation and supports older devices

The USB 3.0 card is easy to install and requires no additional drivers or software in natively supported Windows 8.1 / 8 operating systems. Plus, it features a dual profile design that fits in standard or low-profile cases, so you can rest assured it will fit in your small form-factor system if needed.

Connecting older peripherals isn't a problem either. So, there’s no need to purchase new devices since the adapter card is backward compatible with your USB 2.0 and 1.x technology.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a

The PEXUSB3S2EI is ruggedly built for reliable USB 3.0 device connections and is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol), is supported in Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 or later. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid-state drive.

The StarTech.com Advantage

- Flexibility to connect external and internal USB 3.0 devices and supports UASP
- Fast, hassle-free setup with Windows 8 native support, and fits into standard or low-profile systems
- Backward compatibility lets you save money and connect existing USB 2.0 and 1.x devices
CertificationCE, FCC
ChipsetRenesas / NEC - µPD720201
Colour of productMetallic, Red
Height120 mm
Host interfacePCIe
InternalYes
Linux operating systems supportedYes
ManualYes
Mean time between failures (MTBF)1920042 h
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Output interfaceSATA, USB 3.0
PCI Card form factorfull-height (low-profile)
RoHS complianceYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012
Storage temperature (T-T)-25 - 70 °C
USB 3.0 ports quantity2
Weight55 g
Width18 mm
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ult

Similar products

  • StarTech.com PCI Express Riser Card x8 Left Slot Adapter 1U with Flexible Cable
    StarTech.com PCI Express Riser Card x8...
  • StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
    StarTech.com 4 Port RS232 PCI Express...
  • StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card with UASP Support - 1 Internal 1 External
    StarTech.com 2 port PCI Express SuperSpeed...
  • StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
    StarTech.com 4 Port Native PCI Express...
  • StarTech.com PCI Express to Mini PCI Express Card Adapter
    StarTech.com PCI Express to Mini PCI...

StarTech.com 4-port PCI Express USB 3.0 card - 2 external, 2 internal - SATA power

StarTech.com 4 Port PCI Express USB 3.0 Card - 2 External & 2 Internal - SATA Power - UASP Support - 2x Int Motherboard-Style Headers

PEXUSB3S2EI

In Stock

£43.19
£35.99 Ex VAT.
