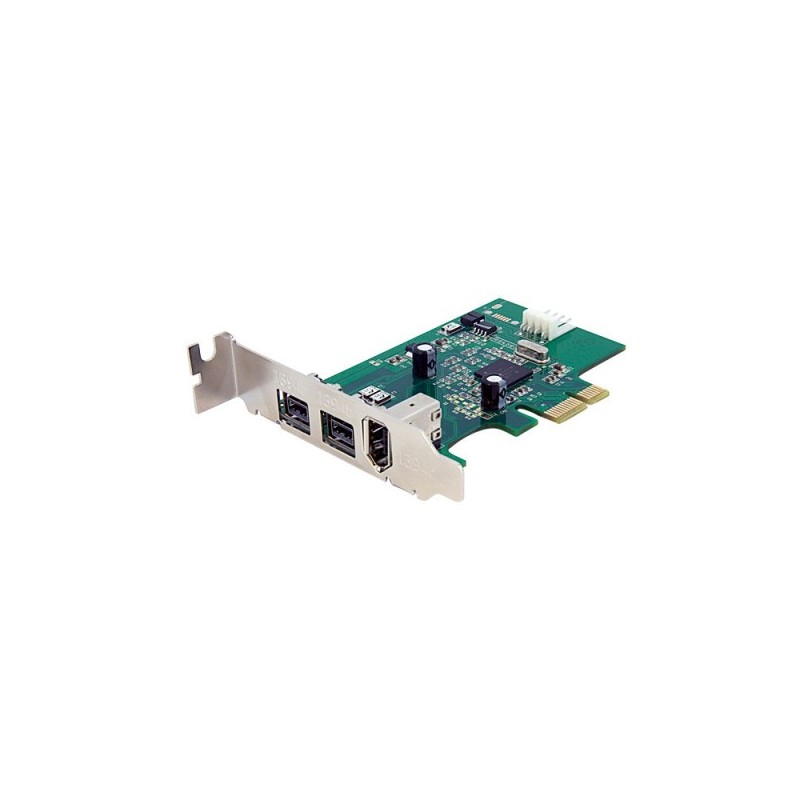

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
The StarTech.com Advantage
- Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
- Native PCI Express chipset design rather than a bridge chip, ensures a fast, reliable and cost-effective FireWire expansion
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
Certification |
CE, FCC |
Chipset |
LSI LW643 |
Colour of product |
Green |
Compatible operating systems |
Windows 2000, XP(32/64bit), 2003(32/64bit), Vista(32/64bit), 7(32/64bit)
Mac G5 OS 10.2.4 +
Linux |
Connectivity technology |
Wired |
Connector(s) |
2x 9-pin FireWire 800 FM, 1x 6-pin FireWire FM, 1x 4-pin SP4 M |
Depth |
120 mm |
Form factor |
LP |
Height |
18 mm |
Host interface |
PCIe |
Mac compatibility |
No |
Operating relative humidity range |
0 - 90 % |
Operating temperature range (T-T) |
0 - 70 °C |
Output interface |
PCI-Express 1.1 |
Package weight |
230 g |
Platform |
PC |
Ports quantity |
3 |
Source data-sheet |
Icecat.biz |
Storage relative humidity range |
-20 - 90 % |
Weight |
46 g |
Width |
90 mm |
Specific References
- EAN13
- 0065030837897
