StarTech.com 2x M.2 SSD Controller Card - PCIe
  • StarTech.com 2x M.2 SSD Controller Card - PCIe
  • StarTech.com 2x M.2 SSD Controller Card - PCIe
  • StarTech.com 2x M.2 SSD Controller Card - PCIe
  • StarTech.com 2x M.2 SSD Controller Card - PCIe
  • StarTech.com 2x M.2 SSD Controller Card - PCIe
  • StarTech.com 2x M.2 SSD Controller Card - PCIe

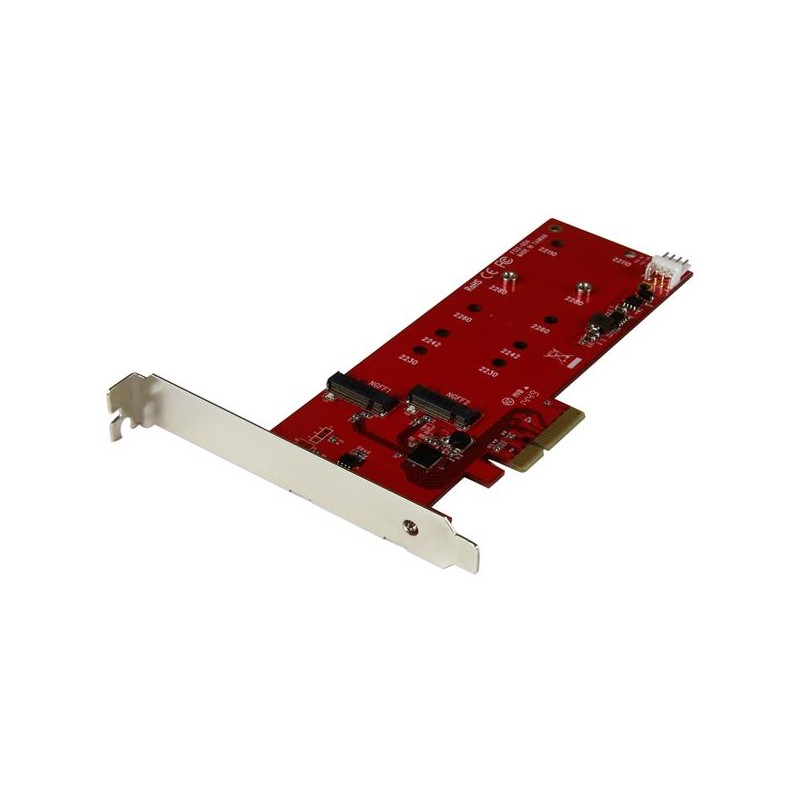

This M.2 SSD controller card lets you install two M.2 SATA solid-state drives (SSD) into your PC through PCI Express. You can mount virtually any M.2 drive directly to the card, giving you a convenient and discreet way to improve your computer system performance.



Leverage the speed and size of M.2 drives

This M.2 controller card lets you take full advantage of the performance and size benefits of NGFF (Next Generation Form Factor) SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in tighter areas within your computer case. By freeing up space within your computer, you’ll also have more room for additional hardware upgrades.



When you couple the card with an M.2 drive, you can give your computer’s performance a noticeable speed boost, enabling you to replace your platter drive with a faster M.2 SATA III (6Gbps) solid-state drive. By installing your operating system on the M.2 drive, you'll have faster access to the files you commonly use, and you can continue to use your higher-capacity platter HDD for bulk storage.



Wide compatibility

You can rest assured that your M.2 SATA drives are compatible with the card. It supports the most common drive sizes, including 22110, 2280, 2260, 2242 and 2230.



The M.2 controller provides additional installation flexibility with a dual-profile design that fits standard or low-profile cases, so it’s the perfect solution for small form-factor or full-sized computers.



Get up and running quickly

This M.2 SSD controller card is easy to install, with native OS support and no additional drivers or software required.



The PEX2M2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
CertificationCE, FCC
ChipsetASMedia - ASM1062
Colour of productRed
Depth168 mm
Height120 mm
Host interfacePCIe
InternalYes
Internal SATA ports quantity2
Mounting brackets includedYes
Native Command Queuing (NCQ)Yes
Operating relative humidity (H-H)20 - 80 %
Operating temperature (T-T)5 - 50 °C
Output interfaceM.2
Package depth216 mm
Package height45 mm
Package weight168 g
Package width155 mm
PCI Card form factorfull-height (low-profile)
PCI version2.0
Peripheral (Molex) power connectors (4-pin)1
RoHS complianceYes
Storage temperature (T-T)-25 - 70 °C
Weight60 g
Width20 mm

PEX2M2.pdf

StarTech.com 2x M.2 SSD Controller Card - PCIe Data Sheet

Download (208.69k)

Similar products

  • StarTech.com PCI Express Riser Card x8 Left Slot Adapter 1U with Flexible Cable
    StarTech.com PCI Express Riser Card x8...
  • StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
    StarTech.com 4 Port RS232 PCI Express...
  • StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card with UASP Support - 1 Internal 1 External
    StarTech.com 2 port PCI Express SuperSpeed...
  • StarTech.com 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
    StarTech.com 4 Port Native PCI Express...
  • StarTech.com PCI Express to Mini PCI Express Card Adapter
    StarTech.com PCI Express to Mini PCI...

StarTech.com 2x M.2 SSD Controller Card - PCIe

StarTech.com 2x M.2 SSD Controller Card - PCIe - PCI Express M.2 SATA III Controller - NGFF Card Adapter

PEX2M2

In Stock

£78.90
£65.75 Ex VAT.
