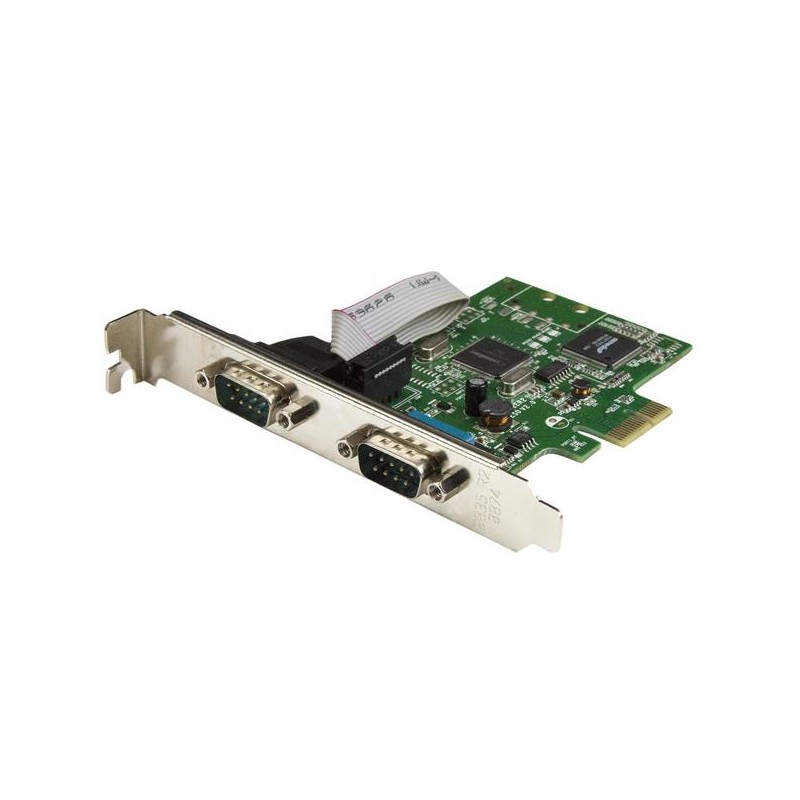

This PCI Express serial card adds two high-performance RS232 serial ports to your desktop computer or server, for connecting your serial-based devices and equipment.
Convenient system upgrades through PCIe
The PCIe serial card can be installed into an available PCI Express slot, to provide two high-performance 16C1050 RS232 serial UART channels/ports. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that don't have RS232 ports. The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.
The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications including manufacturing equipment, POS equipment, security devices such as surveillance cameras, card readers or access panels, and environment or building control systems.
High-performance serial communication
The PCIe serial card delivers high-performance serial communication, with support for data transfer rates of up to 460Kbps. The serial card provides CPU load decrease which helps ensure optimal system performance and prevent errors such as overruns by preserving resources. In addition, the dual-channel UART ensures smooth performance, even while both ports are in use.
Easy installation
The serial card is easy to install and configure, with support for a broad range of Windows® operating systems. Plus, the card features IRQ sharing and supports plug-and-play serial device connections, guaranteeing convenient, hassle-free installation. It comes with a standard-profile bracket installed, and also includes an optional low-profile bracket.
The PEX2S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Baud rate |
460.8 Kbit/s |
Certification |
CE, FCC, Microsoft WHQL |
Chipset |
SB16C1052PCI |
Data bits |
5,6,7,8 |
Depth |
103 mm |
Drivers included |
Yes |
FIFO (First In, First Out) |
256 B |
Flow control support |
Yes |
Full duplex |
Yes |
Height |
20 mm |
Host interface |
PCIe |
Internal |
Yes |
Linux operating systems supported |
Yes |
Mounting brackets included |
Yes |
Operating relative humidity (H-H) |
5 - 85 % |
Operating temperature (T-T) |
-10 - 80 °C |
Output interface |
Serial |
Package depth |
173 mm |
Package height |
30 mm |
Package weight |
149 g |
Package width |
145 mm |
PCI Card form factor |
full-height (low-profile) |
Quick installation guide |
Yes |
RoHS compliance |
Yes |
Serial interface type |
RS-232 |
Serial ports quantity |
2 |
Storage temperature (T-T) |
-20 - 100 °C |
Weight |
61 g |
Width |
120 mm |
Windows operating systems supported |
Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64 |
Specific References
- EAN13
- 0065030868297
