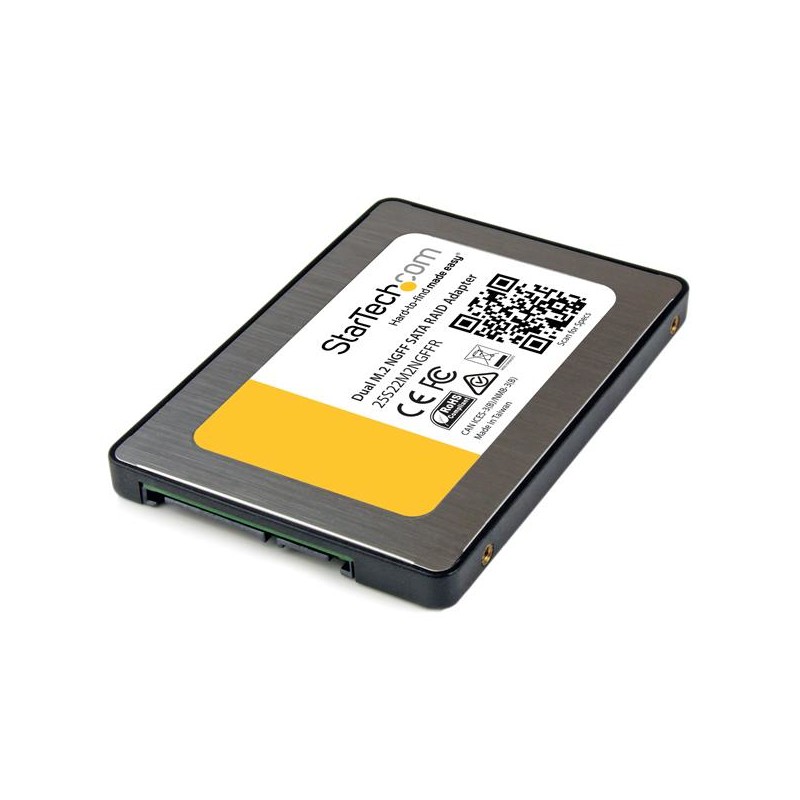

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Get dependable drive protection
The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Get dependable drive protection
The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Chipset | ASMedia - ASM1092R |
| Colour of product | Black,Metallic,White,Yellow |
| Data transfer rate (max) | 6 Gbit/s |
| Depth | 98 mm |
| Height | 8 mm |
| Host interface | SATA |
| Material | Plastic,Steel |
| Mean time between failures (MTBF) | 500000 h |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Output interface | M.2 |
| Package depth | 160 mm |
| Package height | 30 mm |
| Package weight | 100 g |
| Package width | 130 mm |
| RAID levels | 0,1,BIG,JBOD |
| SATA revision | 3.0 |
| Storage temperature (T-T) | -10 - 85 °C |
| Weight | 55 g |
| Width | 68 mm |
