Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
| Cable type | QSFP+ Direct Attach Copper Cable (Twinaxial)(1-7m) / 40GBASE-SR4 Optics also supported (Purchase Intel ed optics separately) |
| Compatible operating systems | intel.com/support/EthernetOS |
| Connectivity technology | Wired |
| Data transfer rate | 8 GT/s |
| Data transfer rate (max) | 40000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet,40 Gigabit Ethernet |
| Ethernet LAN data rates | 10000,40000 Mbit/s |
| Fiber ethernet cabling technology | 40GBASE-SR4 |
| Fiber optic connector | QSFP+ |
| Fiber ports quantity | 1 |
| Flow control support | Y |
| Host interface | PCI-E |
| Intel Data Direct I/O Technology | Y |
| Intel Flexible Port Partitioning | Y |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| Intel Virtualization Technology for Connectivity (VT-c) | Y |
| Intelligent Offloads | Y |
| Interface | fiber |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Internal | Y |
| iSCSI support | Y |
| iWARP/RDMA | N |
| LAN controller | Intel XL710-AM1 |
| Linux operating systems supported | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1as,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad |
| Number of VLANs | 4096 |
| On-chip QoS and Traffic Management | Y |
| Operating temperature (T-T) | 0 - 55 °C |
| PCI-SIG* SR-IOV Capable | Y |
| Product type | 13 |
| Storage relative humidity (H-H) | 0 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| VLAN tagging | Y |
| Status | Launched |
| Halogen free | N |
| Product family | Intel 10 Gigabit server adapter |
| Product series | Intel® Ethernet Server Adapter XL710 Series |
| Ethernet adapter ARK ID | 96046 |
| Load balancing system | Y |
| Product colour | Black,Green |
Specific References
- EAN13
- 0073585831915

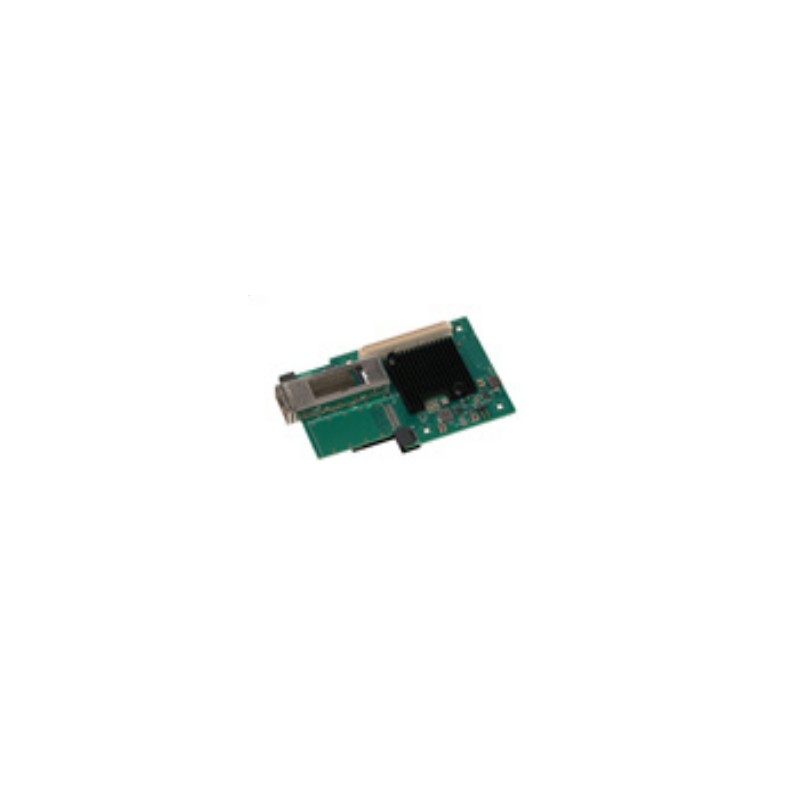

Intel XL710-QDA1 for Open Compute Project
Ethernet Server Adapter XL710-QDA1 for Open Compute Project
£403.68
£336.40 Ex. VAT
Ethernet Server Adapter XL710-QDA1 for Open Compute Project
