Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
| Cable type | SFP28 Direct Attach twinaxial cabling up to 5m / SFP28 SR & LR Optics also supported |
| Colour of product | Black,Green |
| Connectivity technology | Wired |
| Data transfer rate | 8 GT/s |
| Data transfer rate (max) | 25000 Mbit/s |
| Ethernet LAN | Y |
| Fiber ports quantity | 2 |
| Height | 68.65 mm |
| Host interface | PCI-E |
| Intel Data Direct I/O Technology | Y |
| Intel Flexible Port Partitioning | Y |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| Intel Virtualization Technology for Connectivity (VT-c) | Y |
| Intelligent Offloads | Y |
| Interface | fiber |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Internal | Y |
| iSCSI support | Y |
| iWARP/RDMA | N |
| Linux operating systems supported | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1Qbg,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad |
| On-chip QoS and Traffic Management | Y |
| Operating relative humidity (H-H) | 0 - 90 % |
| Operating temperature (T-T) | 0 - 55 °C |
| Other operating systems supported | VMware vSphere ESXi |
| PCI-SIG* SR-IOV Capable | Y |
| Product type | 13 |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Storage temperature (T-T) | -40 - 70 °C |
| VLAN tagging | Y |
| Width | 167 mm |
| Status | Launched |
| Halogen free | N |
| Product family | Intel® 25 Gigabit Server Adapters |
| Product series | Intel® Ethernet Network Adapter XXV710 Series |
| Ethernet adapter ARK ID | 95260 |
Specific References
- EAN13
- 5032037097604

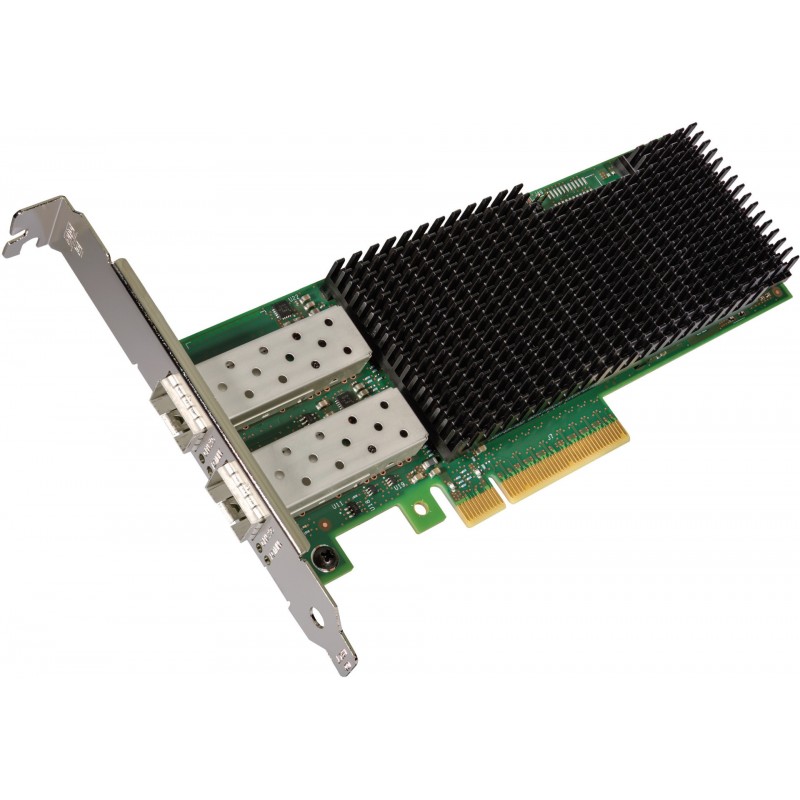

Intel XXV710-DA2
Ethernet Network Adapter XXV710-DA2
£407.09
£339.24 Ex. VAT
Ethernet Network Adapter XXV710-DA2
