Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
| Cable type | Cat 5 up to 100m |
| Cabling technology | 10/100/1000BaseT(X) |
| Chipset | Intel I350 |
| Compatibility | Server |
| Compatible operating systems | Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat |
| Connectivity technology | Wired |
| Data transfer rate (max) | 1000 Mbit/s |
| Depth | 135.4 mm |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Height | 120 mm |
| Host interface | PCI-E |
| Intel Ethernet Power Management | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intelligent Offloads | No |
| Interface | Ethernet |
| Interface type | PCIe v2.1 (5.0GT/s) |
| Internal | Yes |
| iWARP/RDMA | No |
| LAN controller | Intel I350 |
| Low halogen options available | No |
| Manual | Yes |
| Maximum operating distance | 100 m |
| Networking standards | IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| On-chip QoS and Traffic Management | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
| PCI Card form factor | full-height (low-profile) |
| PCI-SIG* SR-IOV Capable | Yes |
| Power consumption (typical) | 5 W |
| Product type | 13 |
| Storage relative humidity (H-H) | 35 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage-over-ethernet | Yes |
| Supported network protocols | TCP, UDP, IP |
| Thermal Design Power (TDP) | 4.4 W |
| Width | 68.9 mm |
| Status | Launched |
| Halogen free | No |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I350 |
| Product codename | Powerville |
| Ethernet adapter ARK ID | 84804 |
Specific References
- EAN13
- 0735858286091

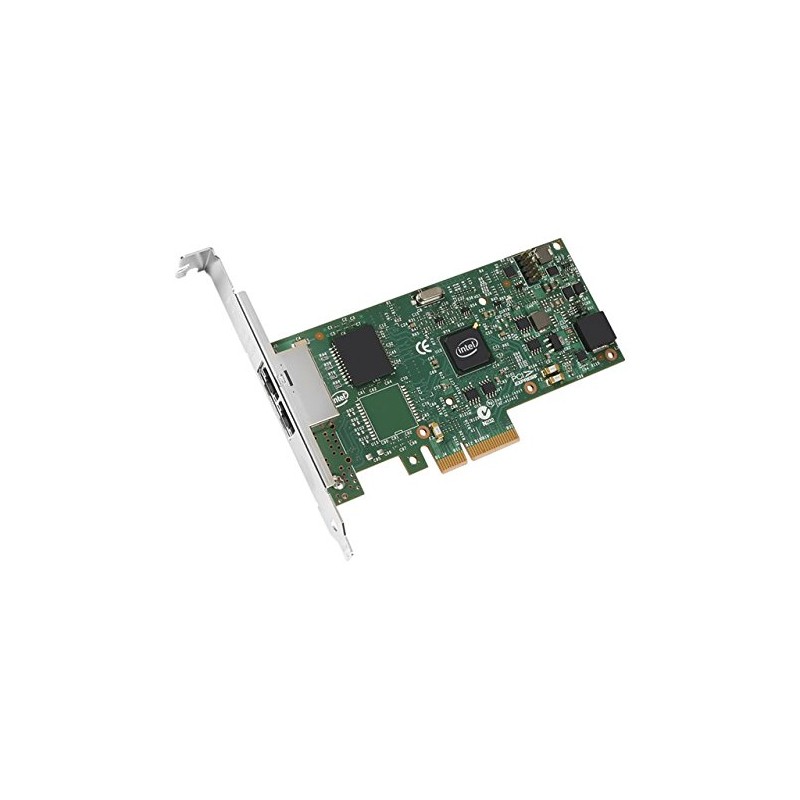

Intel I350-T2V2
Ethernet Server Adapter I350-T2V2
£112.66
£93.89 Ex. VAT
Ethernet Server Adapter I350-T2V2
