Single-Port Gigabit Ethernet server adapter designed for entry-level servers and Audio-Video applications
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
- Low-halogen1 single-port PCI-Express* 10/100/1000 Ethernet adapter
- Innovative power management features including Energy Effcient Ethernet (EEE), DMA Coalescing, ultra-compact design, and a unique ventilated bracket for increased effciency and reduced power consumption
- IEEE 802.1Qav Audio-Video-Bridging (AVB) for tightly controlled media stream syn-chronization, buffering, and reservation
- High-performing design supporting PCI Express* Gen 2.1 2.5GT/s
- Reliable and proven Gigabit Ethernet technology from Intel Corporation
| Cable type | RJ-45 Category-5, up to 100 m |
| Cabling technology | 10/100/1000BaseT(X) |
| Compatible products | Intel Workstation System P4304CR2LFKN, P4304CR2LFJN, P4304CR2LFGN, P4304CR2LFJNL\nIntel Server System P4224IP4LHKC, P4216IP4LHJC, P4208IP4LHGC, P4308IP4LHKC, P4308IP4LHJC, P4308IP4LHGC\n, P4308IP4LHJCL |
| Connectivity technology | Wired |
| Depth | 20 mm |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber Channel over Ethernet | No |
| Height | 55 mm |
| Host interface | PCI-E |
| Intel Data Direct I/O Technology | No |
| Intel Ethernet Power Management | Yes |
| Intel Flexible Port Partitioning | No |
| Intel Virtual Machine Device Queues (VMDq) | No |
| Intelligent Offloads | Yes |
| Interface | Ethernet |
| Interface type | PCIe 2.1(2.5GT/s) |
| Internal | Yes |
| iWARP/RDMA | No |
| LAN controller | Intel I210 |
| Low halogen options available | No |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Number of QPI links | Single |
| On-chip QoS and Traffic Management | No |
| PCI-SIG* SR-IOV Capable | No |
| Product type | 13 |
| Source data-sheet | Icecat.biz |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Thermal Design Power (TDP) | 1 W |
| Thermal power | 1 W |
| Width | 65 mm |
| Born on date | Q1'13 |
| Launch date | 2013-02-15T00:00:00 |
| Market segment | SRV |

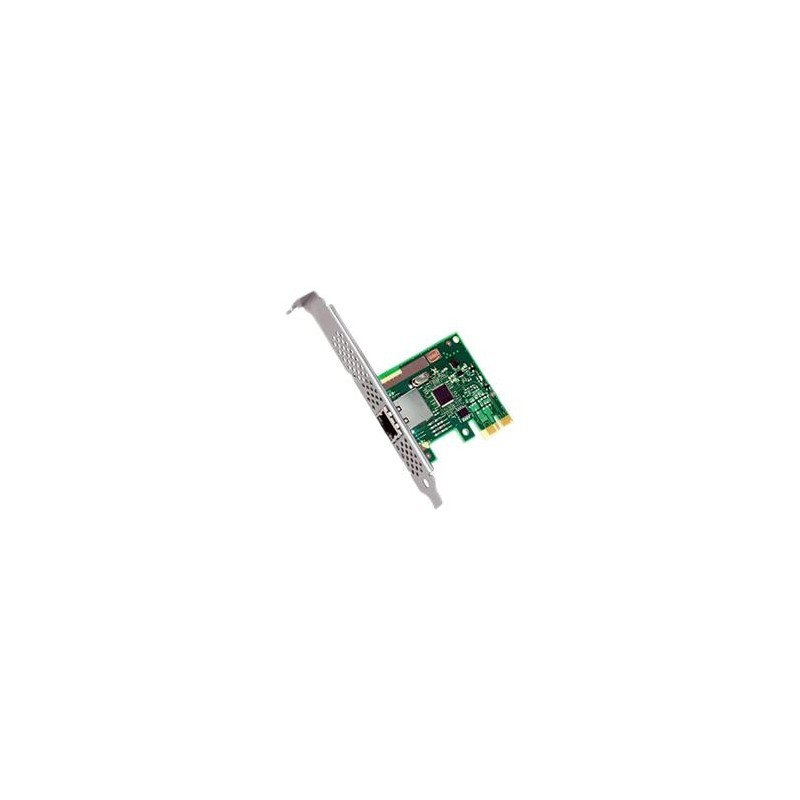

| Product name | Intel Ethernet Server Adapter I210-T1 |
| Status | Launched |
| Halogen free | No |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I210 |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |
| Ethernet adapter ARK ID | 68668 |
| Network interface card type | Server |
Specific References
- EAN13
- 5032037049597
Intel I210T1
Ethernet Server Adapter I210-T1 - 2.5 GT/s, x1 Lane, RJ45, 1 W
£57.07
£47.56 Ex. VAT
Ethernet Server Adapter I210-T1 - 2.5 GT/s, x1 Lane, RJ45, 1 W
