Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
| Cable type | RJ-45 Category-6 up to 55m; Category-6A up to 100m |
| Cabling technology | 10/100/1000BaseT(X) |
| Colour of product | Black,Green |
| Compatible operating systems | http://www.intel.com/content/www/us/en/embedded/products/networking/ethernet-x550-datasheet.html |
| Connectivity technology | Wired |
| Data transfer rate (max) | 8000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber Channel over Ethernet | Yes |
| Host interface | PCI-E |
| Intel Data Direct I/O Technology | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intelligent Offloads | Yes |
| Interface | Ethernet |
| Interface type | PCIe v3.0 (8.0GT/s) |
| Internal | Yes |
| iWARP/RDMA | No |
| LAN controller | Intel X550 |
| On-chip QoS and Traffic Management | Yes |
| PCI version | 3.0 |
| PCI-SIG* SR-IOV Capable | Yes |
| Product type | 13 |
| Status | Launched |
| Halogen free | No |
| Product family | Intel 10 Gigabit server adapter |
| Product series | Intel® Ethernet Converged Network Adapter X550 Series |
| Ethernet adapter ARK ID | 88209 |
Specific References
- EAN13
- 5032037082655

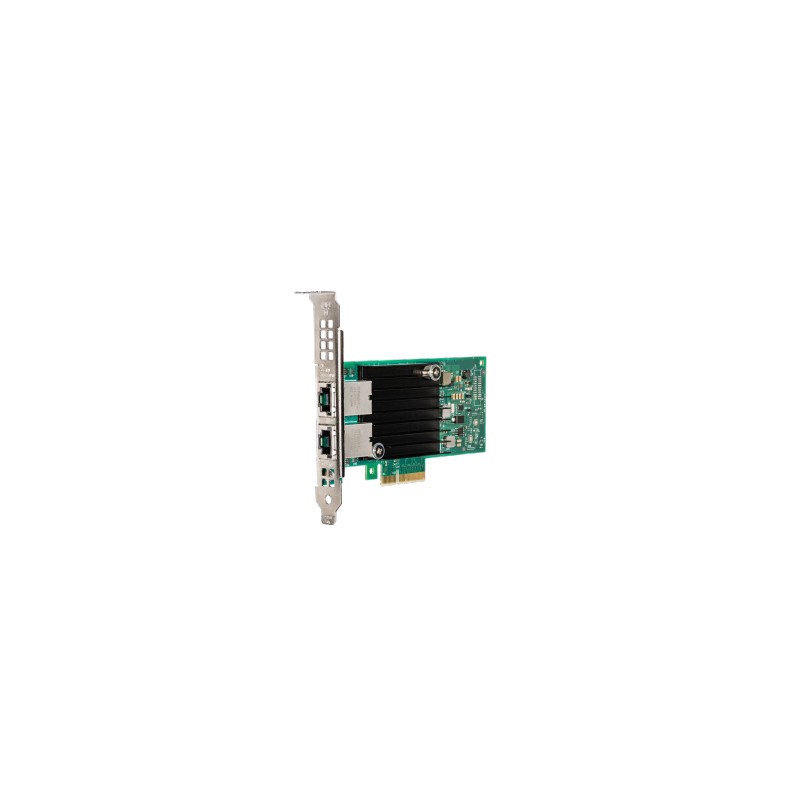

Intel X550-T2
Ethernet Converged Network Adapter X550-T2
£260.22
£216.85 Ex. VAT
Ethernet Converged Network Adapter X550-T2
