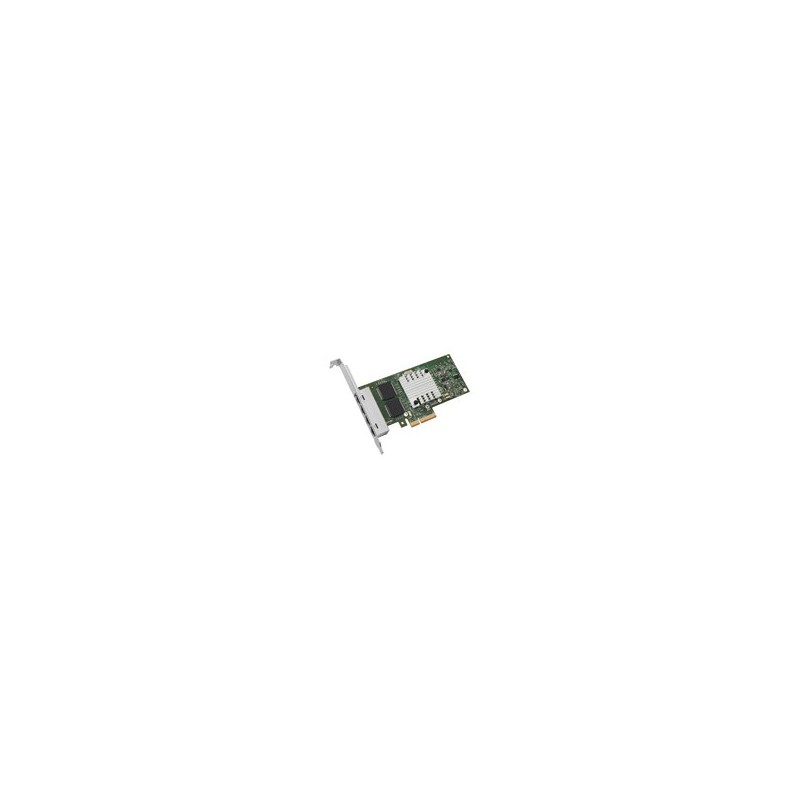

Based on the new Intel® 82580 Gigabit Ethernet Controller, the Intel® Ethernet Server Adapter I340 is Intel’s fourth generation of PCIe* GbE adapter. This adapter showcases the industry’s first fully integrated quad-port PCIe Gen2 GbE controller, providing a smaller footprint and lower power dissipation. In addition, the Intel® Ethernet Server Adapter I340 offers advanced features, including support for multi-core processors and server virtualization, as well as a scalable PCI* Express Gen 2.0 interface.
Intel’s first eco-friendly halogen-free board combines low-power and cost for the best price/performance ratio in a quad-port solution available today.
Intel’s first eco-friendly halogen-free board combines low-power and cost for the best price/performance ratio in a quad-port solution available today.
| Built-in processor | Intel 82580 |
| Cable length | 100 m |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Compatible operating systems | Windows Vista SP1/Unified Storage Solution 2003/ Server 2003 SP2+, Linux, FreeBSD 7.0, UEFI 1.1, VMware ESX 3.x |
| Connectivity technology | Wired |
| Data transfer rate (max) | 1000 Mbit/s |
| Depth | 135.4 mm |
| Dimensions (WxDxH) | 68.9 x 135.4 x 120 mm |
| Ethernet LAN | Yes |
| Ethernet LAN connection | Yes |
| Height | 120 mm |
| Host interface | PCI-E |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating temperature range (T-T) | 0 - 55 °C |
| PCI Bus | 2.0 (5 GT/s) |
| Ports quantity | 4 |
| Power consumption (typical) | 4.3 W |
| Slot type | x4 / x8 / x16 |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Supported network protocols | IEEE 1588 PTC |
| Width | 68.9 mm |
Specific References
- EAN13
- 0675901022774
Intel Ethernet Server Adapter I340, Bulk, 5 pcs
Ethernet Server Adapter I340, Bulk 5 pcs
£1,483.07
£1,235.89 Ex. VAT
Ethernet Server Adapter I340, Bulk 5 pcs
