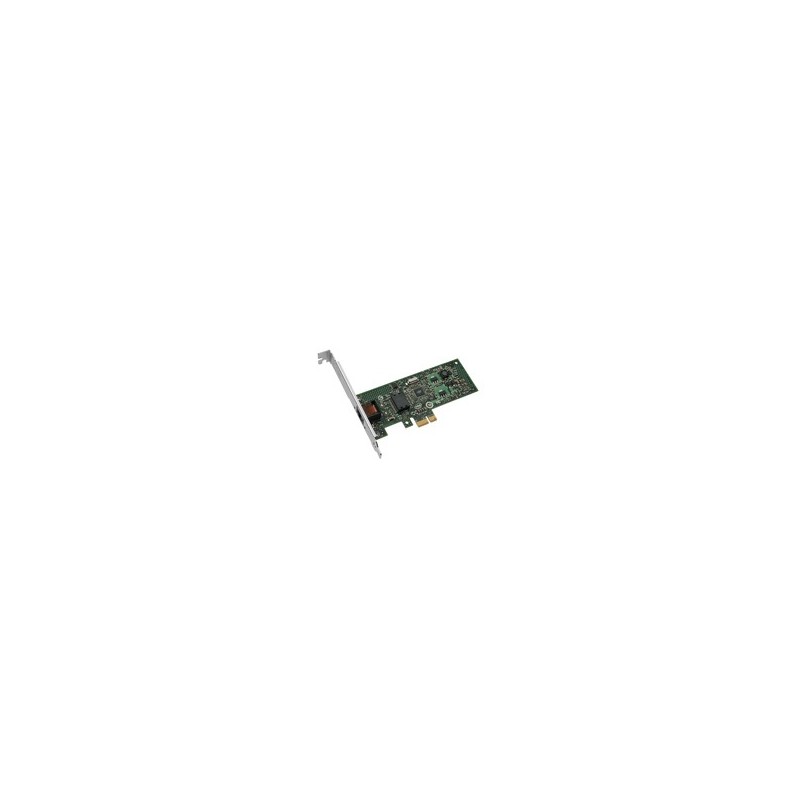

For PCs with PCI Express (PCIe*) slots, the Intel® Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel® 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
Certification |
FCC B, UL, CE |
Compatible operating systems |
Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS |
Compliance industry standards |
802.3z |
Connectivity technology |
Wired |
Data transfer rate (max) |
1000 Mbit/s |
Depth |
119.2 mm |
Height |
120 mm |
Host interface |
PCI-E |
Operating temperature (T-T) |
0 - 55 °C |
Operating temperature range (T-T) |
0 - 55 °C |
Power consumption (typical) |
1.9 W |
Source data-sheet |
Icecat.biz |
Storage temperature (T-T) |
-40 - 70 °C |
Storage temperature range (T-T) |
-40 - 70 °C |
Supported data transfer rates |
10/100/1000 Mbit/s |
Width |
55.3 mm |
Specific References
- EAN13
- 0675900957459
