Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
| Cable type | SFP+ Direct Attached Twin Axial Cabling up to 10m |
| Certification | FCC B, UL, CE, VCCI, BSMI, CTICK, KCC |
| Chipset | XL710-AM1 |
| Colour of product | Black,Green |
| Connectivity technology | Wired |
| Data transfer rate (max) | 10000 Mbit/s |
| Depth | 167.08 mm |
| Embedded options available | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Fiber Channel over Ethernet | Yes |
| Fiber ethernet cabling technology | 10GBASE-LR,10GBASE-SR |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 4 |
| Flow control support | Yes |
| Host interface | PCI-E |
| Intel Data Direct I/O Technology | Yes |
| Intel Ethernet Power Management | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intelligent Offloads | Yes |
| Interface | Fiber |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Internal | Yes |
| iWARP/RDMA | No |
| LAN controller | Intel(R) XL710 |
| LED indicators | Yes |
| Linux operating systems supported | RedHat EL Linux 6.0 |
| Low halogen options available | Yes |
| Management protocols | PXE, SNMP, RMON |
| Networking standards | IEEE 802.1as,IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ad |
| Number of QPI links | Quad |
| Number of VLANs | 4096 |
| On-chip QoS and Traffic Management | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
| Other operating systems supported | FreeBSD |
| PCI Card form factor | full-height |
| PCI-SIG* SR-IOV Capable | Yes |
| Power consumption (typical) | 6.9 W |
| Product type | 13 |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2 |
| Speed & slot width | 8.0 GT/s, x 8 Lane |
| Storage Over Ethernet | iSCSI NFS |
| Storage relative humidity (H-H) | 35 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage-over-ethernet | Yes |
| Supported network protocols | TCP, UDP, IP |
| VLAN tagging | Yes |
| Width | 111.05 mm |
| Born on date | Q4'14 |
| Launch date | 2014-10-01T00:00:00 |
| Market segment | SRV |

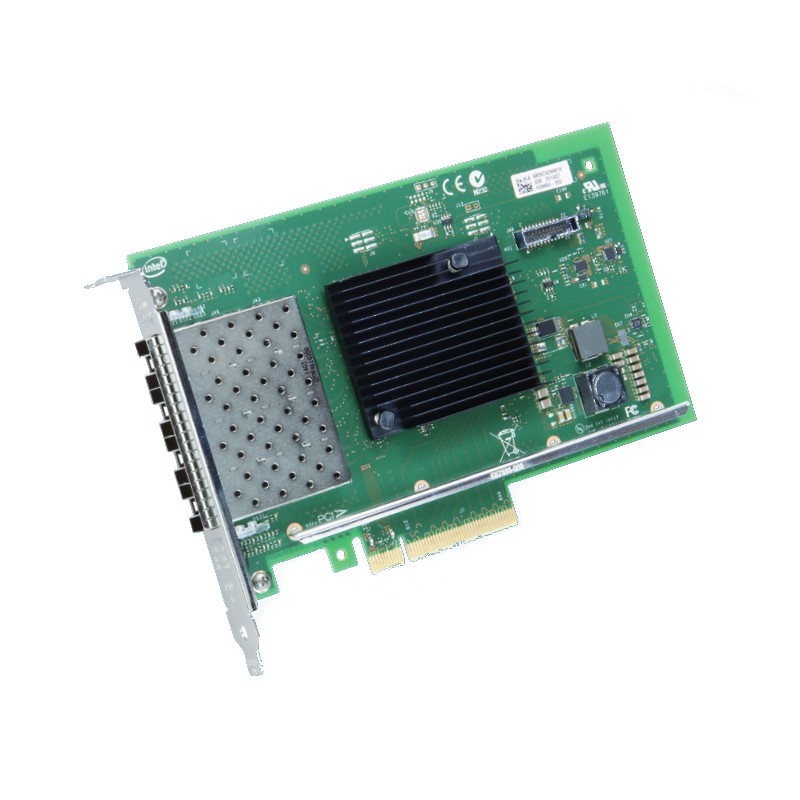

| Product name | Intel Ethernet Converged Network Adapter X710-DA4 |
| Status | Launched |
| Halogen free | No |
| Product family | Intel 10 Gigabit server adapter |
| Product series | Intel Converged X710 |
| Product codename | Fortville |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/converged-network-adapters/ethernet-x710-brief.html |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Ethernet adapter ARK ID | 83965 |
| Network interface card type | Server |
Specific References
- EAN13
- 0675901255745
Intel X710-DA4
Ethernet Converged Network Adapter X710-DA4
£438.68
£365.57 Ex. VAT
Ethernet Converged Network Adapter X710-DA4
