Intel® Ethernet Converged Network Adapters X710
Intel continues its history of Ethernet leadership by introducing the latest 10 gigabit family of adapters, powered by the Intel® Ethernet Controller X710.
The Intel® Ethernet Converged Network Adapter X710 family addresses the demanding needs of the next-generation agile data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
The family of adapters delivers superior performance up to 80 Gb/s (40 Gb/s Tx, 40 Gb/s Rx) bidirectional throughput (quad-port adapter required) in a PCI Express v3.0 x8 slot.
Intel continues its history of Ethernet leadership by introducing the latest 10 gigabit family of adapters, powered by the Intel® Ethernet Controller X710.
The Intel® Ethernet Converged Network Adapter X710 family addresses the demanding needs of the next-generation agile data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
The family of adapters delivers superior performance up to 80 Gb/s (40 Gb/s Tx, 40 Gb/s Rx) bidirectional throughput (quad-port adapter required) in a PCI Express v3.0 x8 slot.
| Cable type | RJ-45 Category-6 up to 55m; Category-6A up to 100m |
| Cabling technology | 10/100/1000BaseT(X) |
| Certification | Class A: USA-FCC; Canada - ICES-003/NMB-003, European Union - CE, Japan - VCCI, Taiwan - BSMI, Korea - MSIP, Australia/New Zealand - RCM, Safety\nEN/UL and CSA C22.2 60950-l| |
| Colour of product | Black,Green |
| Connectivity technology | Wired |
| Data transfer rate (max) | 10000 Mbit/s |
| Depth | 167.08 mm |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Fiber Channel over Ethernet | Y |
| Host interface | PCI-E |
| Intel Data Direct I/O Technology | Y |
| Intel Flexible Port Partitioning | Y |
| Intel Virtual Machine Device Queues (VMDq) | Y |
| Intel Virtualization Technology for Connectivity (VT-c) | Y |
| Intelligent Offloads | Y |
| Interface | Ethernet |
| Interface type | PCIe v3.0 (8.0GT/s) |
| Internal | Y |
| iSCSI support | Y |
| iWARP/RDMA | N |
| LED indicators | Y |
| Linux operating systems supported | Y |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad |
| Number of products included | 1 pc(s) |
| On-chip QoS and Traffic Management | Y |
| Operating temperature (T-T) | 0 - 55 °C |
| Other operating systems supported | FreeBSD |
| PCI Card form factor | full-height |
| PCI-SIG* SR-IOV Capable | Y |
| Power consumption (typical) | 24.69 W |
| Product type | 13 |
| Quality of Service (QoS) support | Y |
| Recommended usage | Server |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
| Storage relative humidity (H-H) | 0 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage-over-ethernet | Y |
| Supported network protocols | TCP, UDP, IP |
| Width | 68.66 mm |
| Status | Launched |
| Halogen free | N |
| Product family | Intel 10 Gigabit server adapter |
| Product series | Intel Converged X710 |
| Ethernet adapter ARK ID | 93428 |
Specific References
- EAN13
- 0735858316194

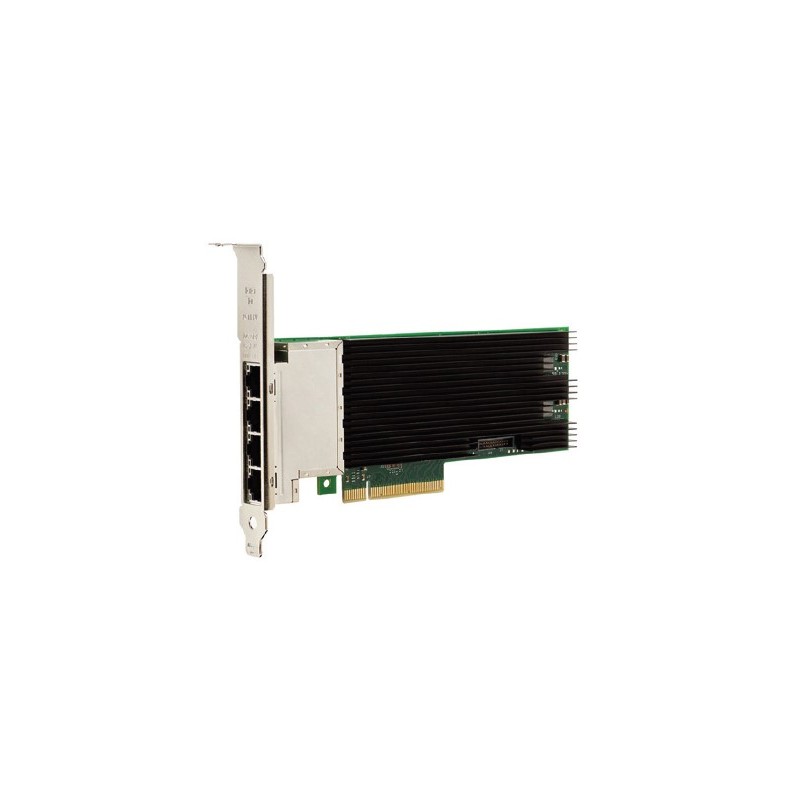

Intel X710-T4
Ethernet Converged Network Adapter X710-T4
£652.18
£543.48 Ex. VAT
Ethernet Converged Network Adapter X710-T4
