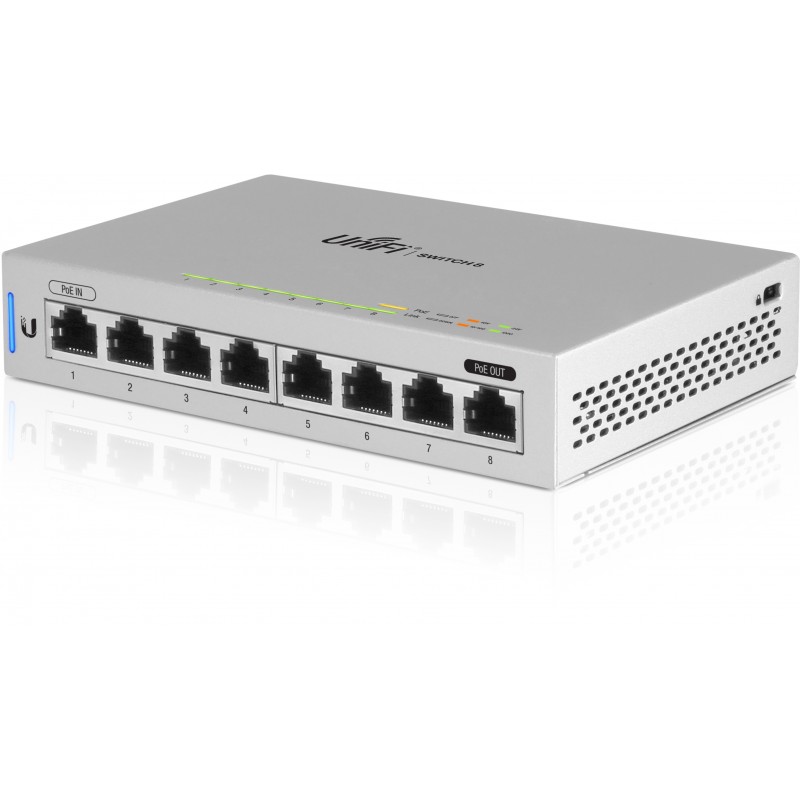

Ubiquiti Networks UniFi 5 x Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi 5 x Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
  • Ubiquiti Networks UniFi 5 x Switch 8 Managed network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
The UniFi Switch 8-port models feature Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your networks.



The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.



Non-Blocking Throughput

The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.



Switching Capacity

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.



Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
10G support No
Auto-sensing Y
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Broadcast storm control Y
Built-in processor Y
Certification ETSI300-019-1.4, CE, FCC, IC
Colour of product Grey
Depth 99.5 mm
Flow control support Y
Height 30.7 mm
Housing material Steel
Internal memory 256 MB
Jumbo frames support Y
LED indicators Activity,Link,PoE,Speed
Networking standards IEEE 802.1x,IEEE 802.3af
Operating relative humidity (H-H) 5 - 95 %
Operating temperature (T-T) -5 - 45 °C
Output current 1.25 A
Output voltage 48 V
Port mirroring Y
Power consumption (max) 12 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 1
Power supply included N
Processor frequency 400 MHz
Quick start guide Y
Reset button Y
Spanning tree protocol Y
Switch type Managed
Switching capacity 16 Gbit/s
Throughput 8000 Mpps
Total Power over Ethernet (PoE) budget 60 W
VLAN support Y
Wall mountable Y
Web-based management Y
Weight 432 g
Width 148 mm
Power over Ethernet (PoE) power per port 15.4 W
Power over Ethernet (PoE) voltage range 57 - 44 V
Power connector DC-in jack

Specific References

EAN13
0817882020411

US-8-5.pdf

Ubiquiti Networks 5 x Switch 8 Data Sheet

Ubiquiti Networks 5 x Switch 8

8 x RJ-45, 1 PoE Passthrough Port, 12W
Out of Stock
£552.31
£460.26 Ex. VAT
Reference: US-8-5
Quantity
